Gate for swimming pool security fence 16 mm black
ref: 19CU00091
- Gate for security fence.
- High-strength mesh with 1500 strands of draconium.
- Height: 1.22 metres.
- vERY EASY TO ASSEMBLE!
- Reinforced aluminium posts.
- Posts of 16 mm.
- Colour: black.
- (also available in green, brown, white, sand)
- Warranty: 5 years.
Free shipping
Technical characteristics
THE MODULE INCLUDES:
- 1 metre rigid aluminium frame + pvc coated polyester mesh.
- Double aluminium side posts.
- Security lock.
- 4 plugs + 4 plugs.
- 1 security latch.

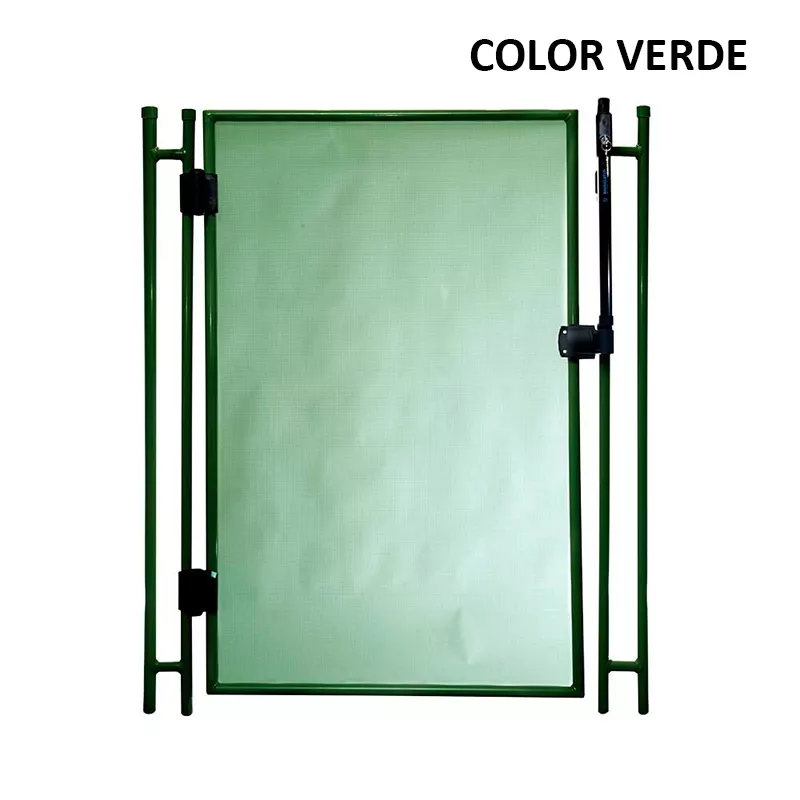

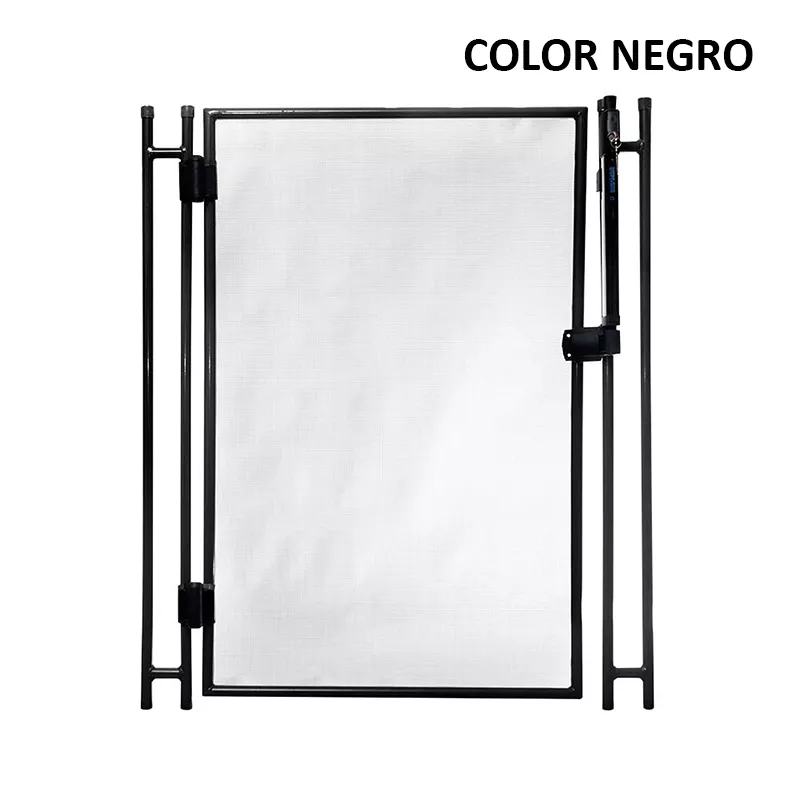

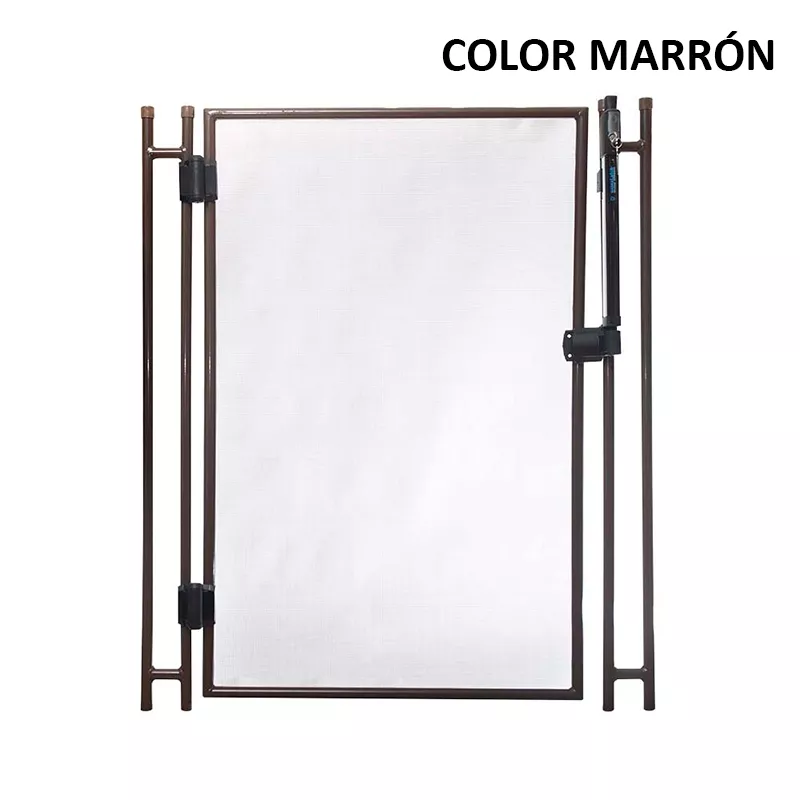

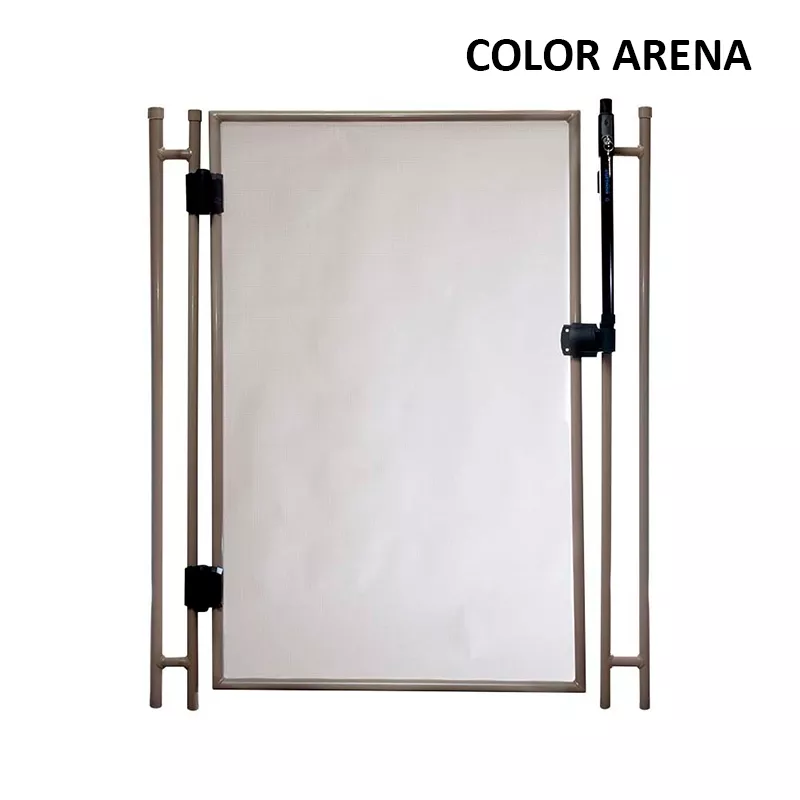

OTHER COLOURS AVAILABLE: green, brown, white and sand. If you want any of the following colours, please indicate it in the comments when ordering or call us.
MESH
- GREAT DURABILITY thanks to the triple stitched edge design and mesh in aircraft fabric.
- Heavy duty mesh with 1500 strands of dracon, supporting over 3.5 tonnes per metre.
- Maintenance free.
POLES
- Aluminium posts reinforced with honeycomb, guaranteeing maximum resistance up to 150 kg of impact.
- Anti-impact and anti-shock rubber end caps at the end of the post.
- Insulating ground plugs and custom-made caps to protect them when the fence is removed.
- Partially or fully removable fence easily.
- Posts anchored by means of 16 mm anchor plugs.
- Baked-on paint (4000 hours) and bluing in special colours.
- Metal finishes, polished and painted.
Any swimming pool, however small or shallow it may seem, can be a serious danger for children or pets.
We must be constantly vigilant. In addition to surveillance, it is important to have some method of security that prevents them from approaching the edge of the pool.
INSTALLATION OF SAFETY FENCING
1. PLAN. Plan your installation by choosing the most common access area to your pool for your gate, measure and mark the layout of your security fence on the ground.We recommend that for best results you do not install the gate in a corner or at an angle.
2.DOUBLE POSTS. Remember that the gate has a double post structure on both sides to ensure better security, which means that a total of four holes will be needed.
3. Leave a distance of 6 cm between the last fence post and the first gate post, 8.5 cm between the double posts and 83 cm of gap for the gate between the inner posts.
4.DRILLING. Drill the holes and fill them with resin or chemical dowel, place the plastic dowels and let them dry.
5. ASSEMBLY. Assemble the double posts and fit the 2 hinges to join the inner post to the gate panel (following the accompanying instructions).
6. LOCK. Install the security lock following the accompanying instructions.
7. LATCHES. Attach the security latches to join the end of the fence section to the outside post of each double post using the hole left by the second bolt from the top.
8. ADJUST. Adjust the safety latch to the required height and your security gate is ready.
CERTIFICATES
Manufactured in accordance with French standard NFP 90-306.
Complies with the Technical Building Code DB-SUA.
