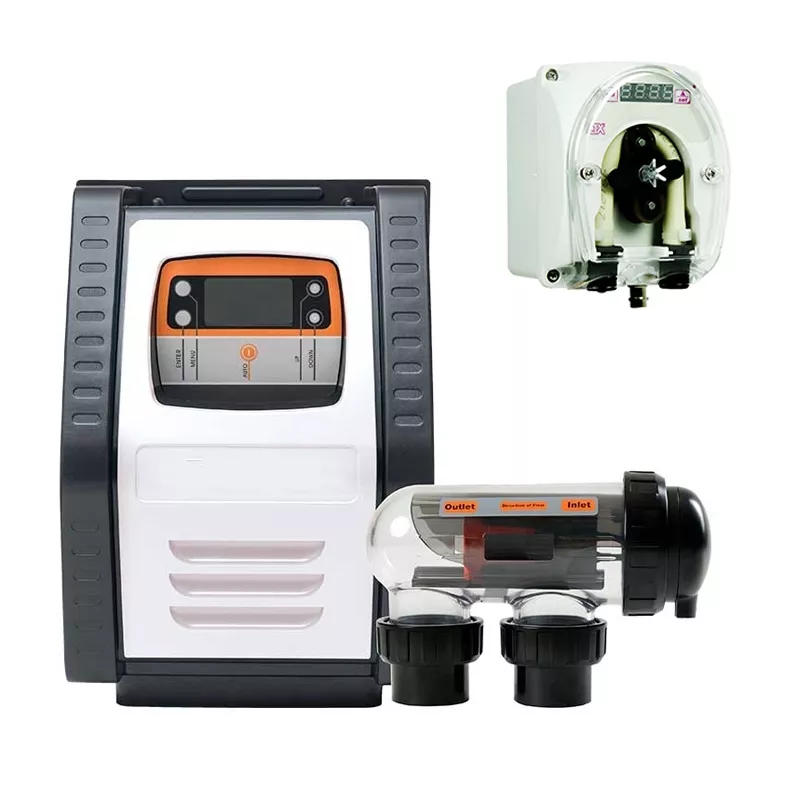

Salt chlorinator CTX E-Series 15 gr with pH regulator CTX E-Series

Salt Electrolysis, the healthiest and most convenient solution for disinfection

Inspired by nature, salt electrolysis systems generate chlorine from common salt dissolved in the water. The salt necessary for its operation must be added only once to the pool in a concentration of 4-6 g./L. (6 times lower than that of sea water) and similar to physiological serum or human tears.

E-Series Salt Electrolysis System

• Output: 15 g/h.
• Salt concentration: 4 to 6 g/l.
• Self-cleaning cell, requires little maintenance.
• Affordable, robust, reliable and very compact.

Control

The E-Series salt electrolysis system eliminates the need for frequent manual dosing of liquid or granular chlorine.
Manual dosing with liquid or granular chlorine can be incorrect. Incorrect dosing can cause eye irritation, skin irritation and a strong chlorine odour.
E-Series equipment consistently generates the required level of chlorine. All that needs to be done is to readjust the salt level in the water from time to time.

Convenience

Manual dosing with liquid or granular chlorine can be somewhat disorganised and requires daily discipline. The E-Series salt electrolysis systems generate chlorine continuously.

Ease of use

The touch screen is very easy to use and allows complete control of the pump and disinfection system. Thanks to its ease of use, the E-Series chlorinator allows you to select chlorine output levels from 1 to 8.

Intelligent self-cleaning system

The LCD touch screen allows you to easily adjust the amount of chlorine generated and have complete control of the disinfection system.

Durability

The E-Series range guarantees high levels of durability and long life of all components. The LCD touch screen has been specifically designed to withstand high temperatures and UV radiation, and the electronic components are mounted on heatsinks to maximise cooling and long life.

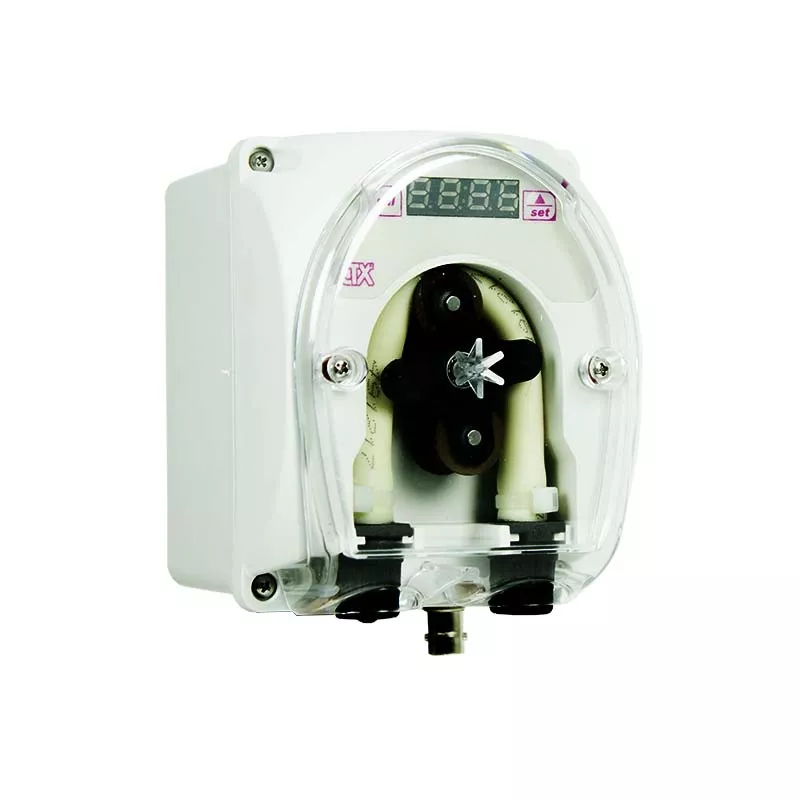

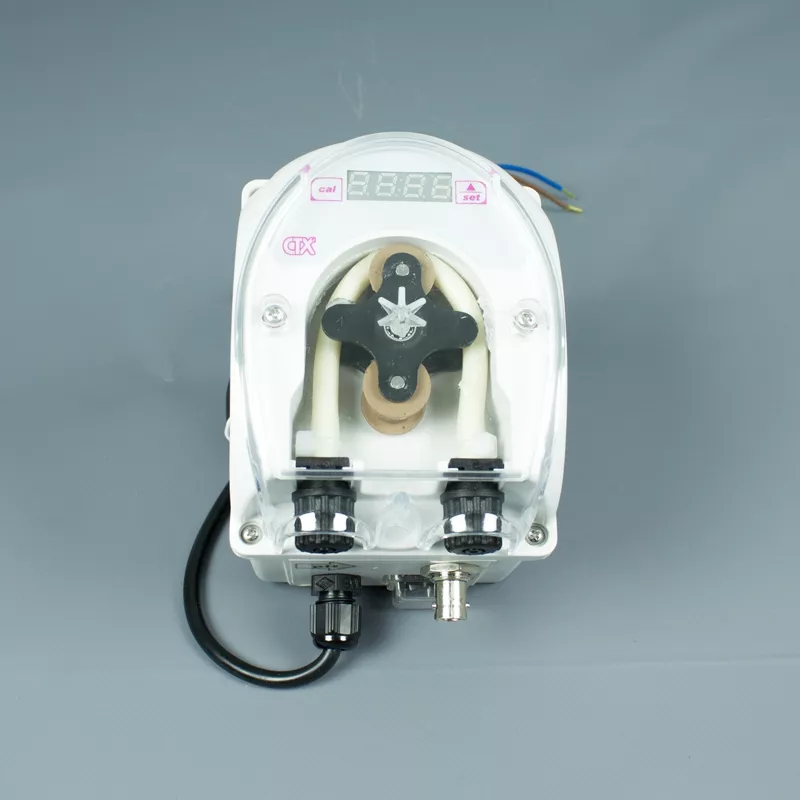

Features E-Series Peristaltic pH Regulator Pump CTX

• Flow rate of 1.5 l/h at 1.5 bar.
• PH measurement range: 6 to 8 (0.1 sensitivity).
• Power supply: 90/265 VAC.
• 4-digit 7-segment display.

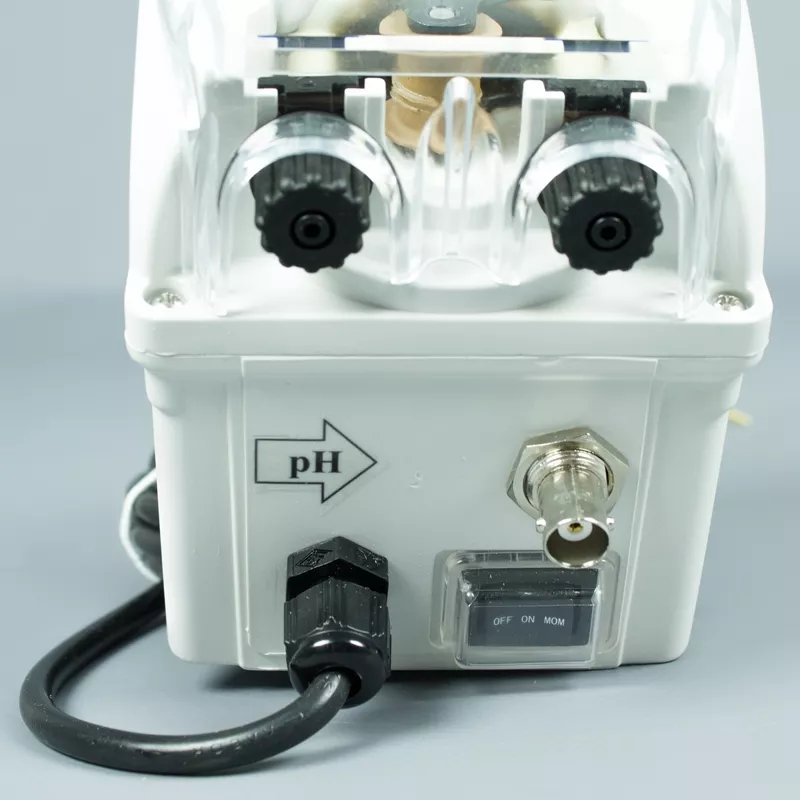

• BNC connector for pH electrode.
• 3-position switch: priming, ON and stand-by.
• Dosing method: ON-OFF (adjustable set point).
• 1-point pH calibration method.

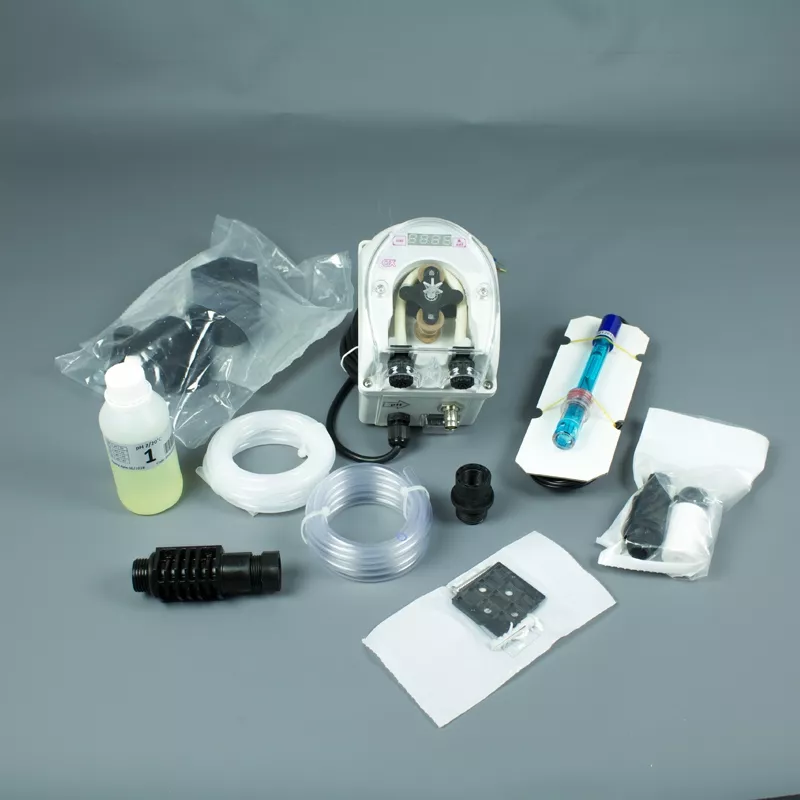

The peristaltic pump includes:

• PH electrode with pH7 standard solution.
• HDPE tube 4x6 mm for delivery (3 m).
• PVC glass tube 4x6 mm for suction (2 m).
• Foot valve (PVC).
• Injection valve (lip) FPM (3/8" GAS).
• Electrode holder.
• Collar DN50.
