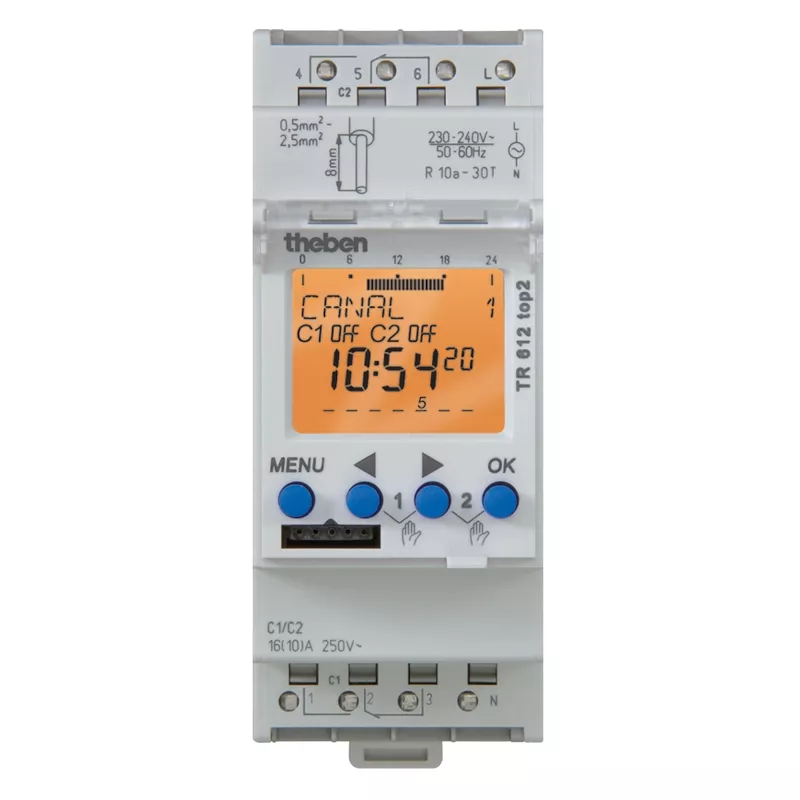

Digital switch Theben with weekly programming (2 channels)

Switch Theben

• Digital time switches with weekly programming
• 2 channels
• Quick-action terminals
  - For 2 conductors each
  - Cable or wire (with or without cable gland)
  - Cable diameter: 0.5 - 2.5 mm²
  - Control button for disconnecting the plug connection
• User guidance in text form on the display
  - Pre-set date and time
  - Fully operability without mains connection
• 56 programming memories
• Interface for OBELISK top2 memory card (PC programming)
  - 2nd switching programme can be plugged in
  - Copy programmes
  - Save programmes
• 10-year power reserve (lithium battery)
• Zero-crossing switching for relay protection and for switching high lighting power (not available for 24 V products)
• ON/OFF switching times
• Switching pre-selection
• Permanent ON/OFF switching
• Integrated hour counter
  - Resetting to initial state possible
  - Maintenance function for monitoring maintenance intervals
• Holiday programmable by date
• Display illumination (can be switched off)
• PIN code
• Automatic summer/winter time changeover
  - Deactivatable
  - Predefined switching rules for Europe, USA and other countries
  - Possibility to select own switching rule or switching at a fixed date
