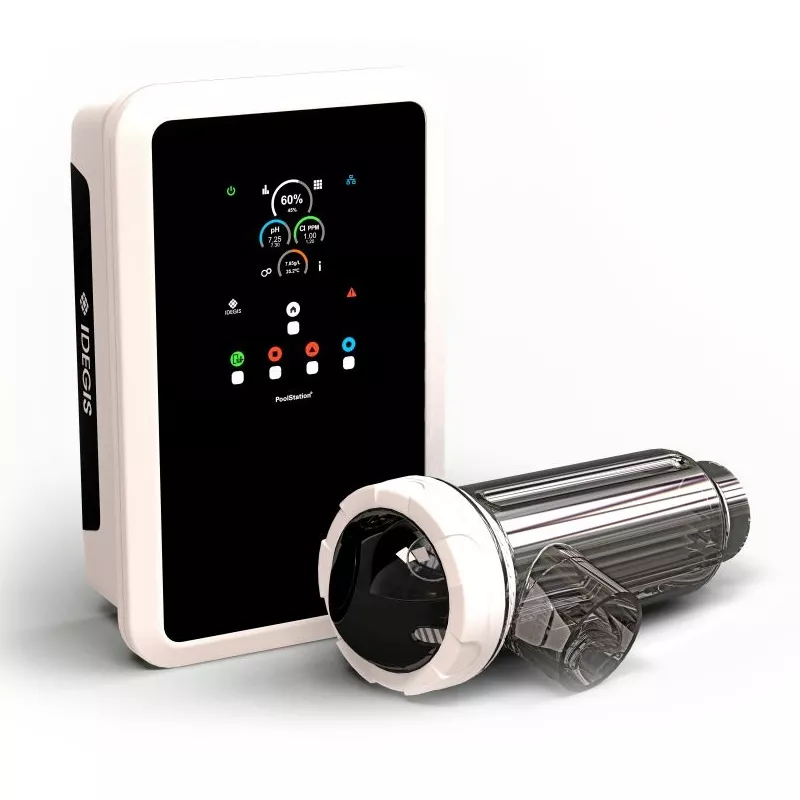

Salt water chlorinator Idegis Domotic D-32 S2

Salt Chlorinator Idegis Domotic

• Family of self-cleaning salt electrolysis units for residential pool applications up to 160 ^m3.
• All models include maintenance-free, Premium-grade cells with more than 12,000 real hours of continuous operation.
• One of the main new features of this range is the possibility of integrating control functions into the equipment (pH, ORP, TEMPERATURE, CONDUCTIVITY, etc.) by means of S-DRIVER plug-in modules.
• New user interface based on a colour touch screen.
• Improved watertightness (IP 65) which makes this range particularly resistant to aggressive environments.
• Total connectivity: this range integrates a Poolstation module as standard, which allows the customer to access their equipment from anywhere via any mobile device connected to the internet. In addition, these devices can be easily integrated into other home automation platforms thanks to the fact that they also include an RS-485 serial port (isolated) accessible via Modbus protocol as standard.
• The new Domotic Series 2 are designed with Multi-Tec technology, which allows our entire range of water treatment equipment for residential pools to share the same hardware platform, thus facilitating the homogeneous integration of different equipment (salt electrolysis, Neolysis, controllers, UV, etc.) in the same installation.

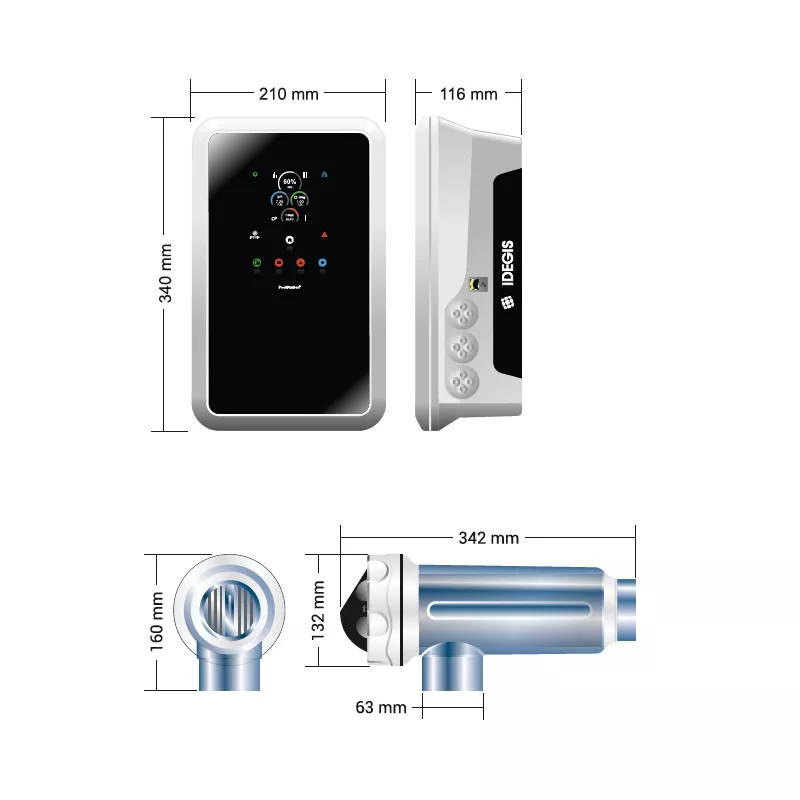

Characteristics of the salt water chlorinator Idegis Domotic D-32 S2

• Voltage: 230 V ac 50/60 Hz.
• Consumption: 0.89 A
• Fuse (5x20mm): 4 AT
• Output (Adc): 32 A (2 x 16A)
• Production (gr Cl2/hr): 25/32
• Recommended salinity: 5-6 gr/l
• Polarity inversion: 2h,3h and test (menu config.)
• Production control: 0-100%
• Salinity monitoring: Yes, in real time
• Salt alarm indicator: High and low
• System Conf. menu: LCD colour touch screen
• Inputs-Outputs: 4 digital - 4 relays
• Modbus & Poolstation (compatible): Yes

Descriptive Panel

1. Connected equipment indicator.
2. Data history access key.
3. Display of pH value/setpoint.
4. TEMPERATURE/SALINITY display.
5. Poolstation functions configuration key.
6. Access key to MAIN MENU.
7. Manual operation of auxiliary relay 2.
8. Manual operation of the auxiliary relay (PUMP).
9. ALARM indicator.
10. GENERAL SYSTEM CONFIGURATION key.
11. ORP/CLORINE (ppm) value/setpoint display.
12. System GENERAL INFORMATION access key.
13. Poolstation system connected to the network indicator.
14. Manual override of auxiliary relay 3.
15. Manual override of auxiliary relay 4.
