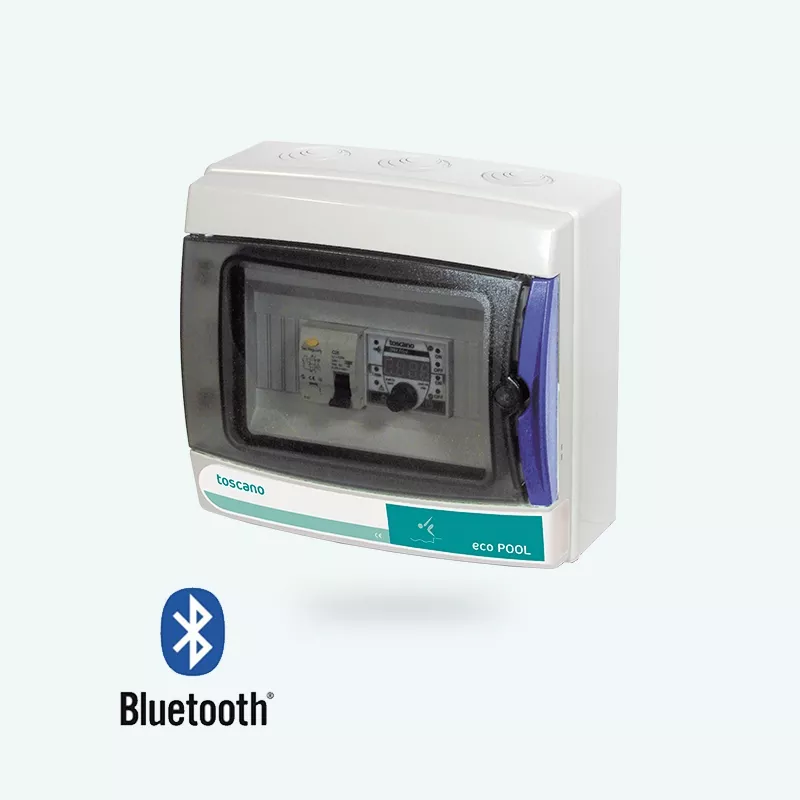

Digital modular panel 1 single-phase pump + Bluetooth

what is VIGILEC?

Vigilec is a line of pump protection and control panels with digital technology, in accordance with the EN60204 standard. It is used in submerged pump installations, pressure groups and swimming pools.

Electronic protection

Electronic pump protection offers a much faster and more accurate response against under/overload than thermal protection, avoiding untimely tripping due to overtemperature, and therefore, greater protection for your pumps.

Ready to install

These "Ready to install" devices avoid design and development costs, as well as the need to assemble and wire the panel. At the same time, they are designed to be easy and safe to operate, with simple assembly and adjustment of the equipment.

Digital control and protection module

CONNECTION TERMINALS

A. Transformer input (In>14A).
B. External temperature probe input.
C. Spotlight control input (ON/OFF and RGB).
D. Pump control input.
E. Auxiliary relay output.
F. Spotlight power supply output.
G. Pump power supply output.
H. 230 V supply input.

PILOTS

1. Filter program 1.
2. Filter program 2.
3. Pump running.
4. Lighting program.
5. Auxiliary output.
6. Current time.
7. Alarm / calibration

APP for pool control

Thanks to the TPM-Pool control module included in these panels, we can control the pool using only a smartphone and its Bluetooth connection.

With this application you can:

• Manually start up the purifier.
• Turn the pool lights on or off and change the setting (colour of the LEDs).
• Consult the TPM-Pool controller clock, the start and end time of each filtering or lighting cycle, as well as the duration of these cycles.
• To know the status, activated or deactivated, of the scrubber and the spotlights.
• Detect if the pump of the purifier has any problem.
