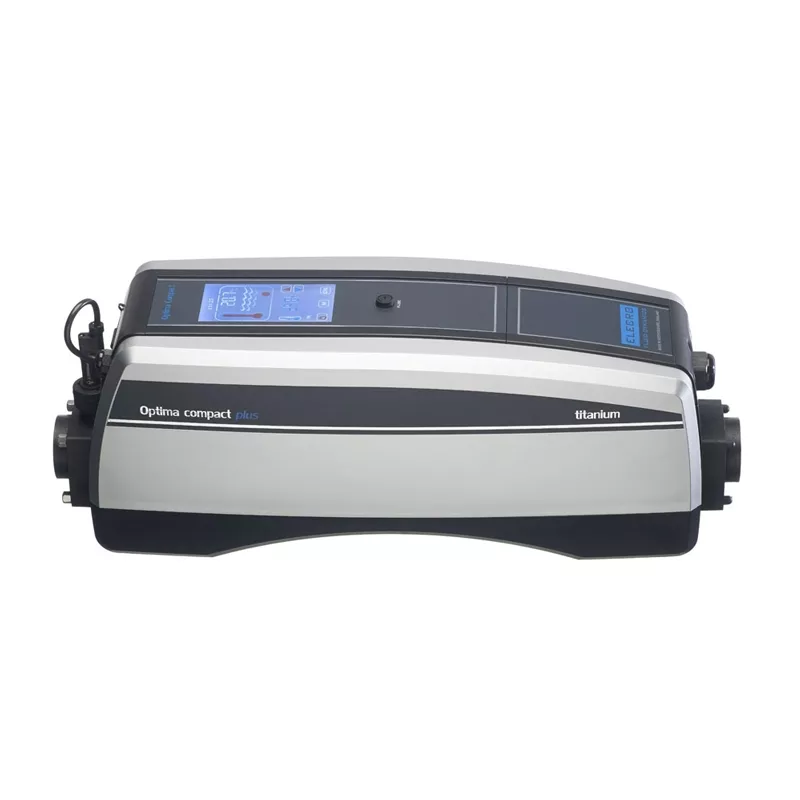

Pool heater Elecro Optima Compact Titanio 3 KW mono

ELECRO OPTIMA COMPACT HEATER

The Optima Compact heater is designed and built to the highest quality standards. It is equipped with titanium heating elements. A compact, reliable and robust construction that guarantees the hardness and durability of a heater capable of favouring a perfect bath temperature and an easy and intuitive programming.

All Elecro heaters comprise spring-shaped heating elements, through which the water flows in a vortex. This technology provides superior efficiency and a long life expectancy for the product, allowing it to prevent the formation of deposits on the heating elements.

The Optima Compact range is easily operated via the numerical controller. The outlet manifold houses a flow detector that sends a signal to the control panel, while the inlet manifold distributes the water equally between the three tubes to eliminate the risk of air bubbles. The safety and protection of the equipment is provided by the flow detector and a manual safety thermostat that prevents overheating. The device can be mounted vertically or horizontally thanks to the brackets and base provided.

ELECRO OPTIMA COMPACT FEATURES

• Robust and durable.
• Exceeds global safety and reliability standards.
• Compatible with BMS systems.
• Quiet operation.
• Resistance with cleaning and anti-corrosive vortex effect.
• Intelligent, touch-sensitive controller.
• Priority heating function.
• Wall or floor mounting.
• Timer function.
• Maintenance free.
• 100% operational efficiency throughout the life of the product.
• Alternative control thermostat:
  - Numerical (standard): 0.5ºC differential.
  - Mechanical: 1.0ºC differential.

TECHNICAL SPECIFICATIONS

• Minimum flow:
  - 3-6 KW: 1 ^m3/h
  - 9-24 KW: 4 ^m3/h
• Maximum flow: 17 ^m3/h.
• Recommended flow: 10 ^m3/h.
• Resistance: Titanium, low density.
• Tubes: BS316L Stainless steel.
• Contactor: 2 Schneider Electric contactors mounted in cascade.
• Thermostat: 55ºC (manual reset).
• Flow detector: contact wire covered with a thin layer of gold and titanium shaft.
• High temperature wiring, silicon sheath and stranded copper conductors.
• Seal: special polymer formula.
• Water connections: 1.5" BSP female connection, with ABS adapter for 1.5" pipes up to 50 mm.
• Operating pressure: 4 bar maximum.
• Installation: floor or wall mounting.
• Standards application:
  - European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC
• Standardised norms:
  - EN 55014 - EN55104
  - EN5501
  - EN5502
  - CEI 801-4
  - CEI 801-2
  - CEI 801-3
  - The European Low Voltage Directive 72/23/EEC The Harmonised Standard EN 60335-2-35
