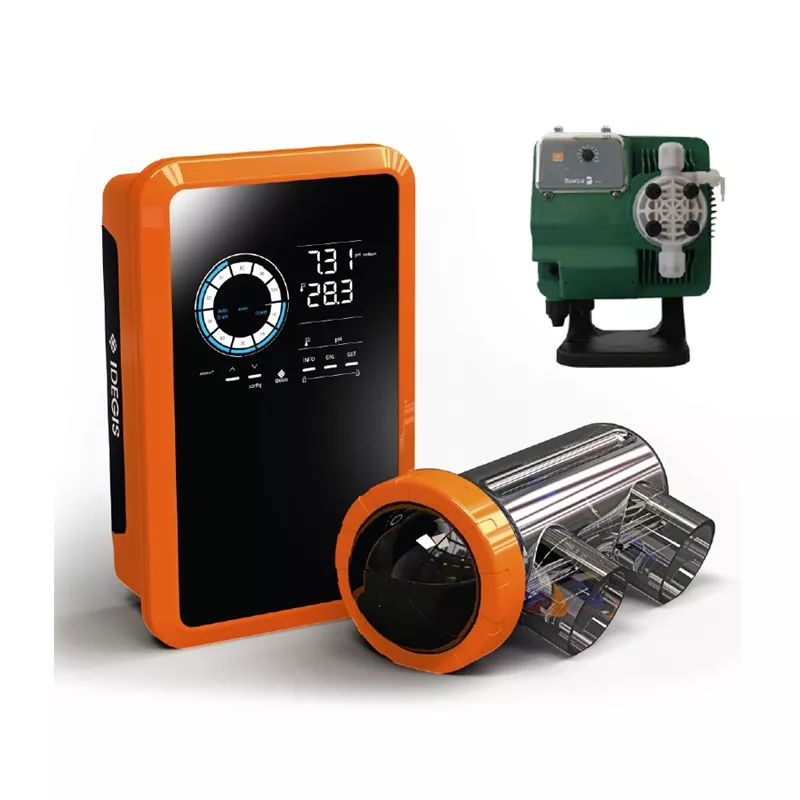

Salt chlorinator Idegis Tecno DT-30 S2 pH

Salt Chlorinator Idegis Tecno S2

• Family of self-cleaning salt electrolysis units for residential swimming pool applications up to 160 ^m3. There are also versions with integrated pH controller.
• Like its predecessors, this range is characterised by its competitive cost and simplicity of installation and operation.
• All models include Tech-grade maintenance-free cells with more than 10,000 real hours of continuous operation, as well as salinity and water temperature readings.
• New user interface based on an innovative large touch screen.
• Improved watertightness (IP 65) which makes this range particularly resistant in harsh environments.
• Connectivity: this range integrates as standard an RS-485 serial port that allows immediate connection to a Poolstation module by means of which the customer can access the equipment from anywhere via any mobile device connected to the internet.

Features Salt Chlorinator Idegis Tecno DT-30 S2 + pH

• Voltage: 230 V ac 50/60 Hz.
• Consumption: 0.8 A
• Fuse (5x20mm): 3.15 AT
• Output (Adc): 6 A x 5
• Production (gr Cl2/hr): 24-30
• Recommended salinity: 5-6 gr/l
• Polarity inversion: 2h,3h and test (soft)
• Production control: 0-100%
• Salinity measurement: Yes, in real time
• Salt alarm indicator: High and low
• System Conf. menu: Yes
• Modbus & Poolstation (compatible): Yes
• Built-in pH control.

Descriptive Panel

1. Production scale (%).
2. CONFIGURATION MODE indicator.
3. Automatic COVER ON indicator.
4. System STOPPED.
5. SALINITY indicator.
6. TEMPERATURE indicator.
7. Display: TEMPERATURE, PH, ORP (mV).
8. Display: TEMPERATURE, SALINITY, ORP (mV).
9. ALARM indicator pH/ORP HIGH.
10. INTELLIGENT DOSING mode indicator activated.
11. ORP (mV) indicator.
12. PUMP-STOP ALARM indicator.
13. LOW pH/ORP ALARM indicator.
14. CONSIGNA indicator.
15. DOSAGE PUMP FUSE ALARM indicator.
16. PH ALARM icon.
17. ORP ALARM icon (mV).
18. SALINITY ALARM icon (g/l).
19. TEMPERATURE ALARM icon.
20. SYSTEM INFORMATION key.
21. PH/ORP CALIBRATION key (mV).
22. PH/ORP SET POINT key (mV).
23. DISPLAY LOCK key.
24. DECREASE production key.
25. INCREASE production key.
26. CELL DEPLETED ALARM indicator.
27. FLOW ALARM indicator.
28. AUTOMATIC CONTROL indicator (integrated ORP controller).
29. EXTERNAL CONTROL indicator.
30. AUTO-CLEANING system POLARITY indicators.
