- -€64.01

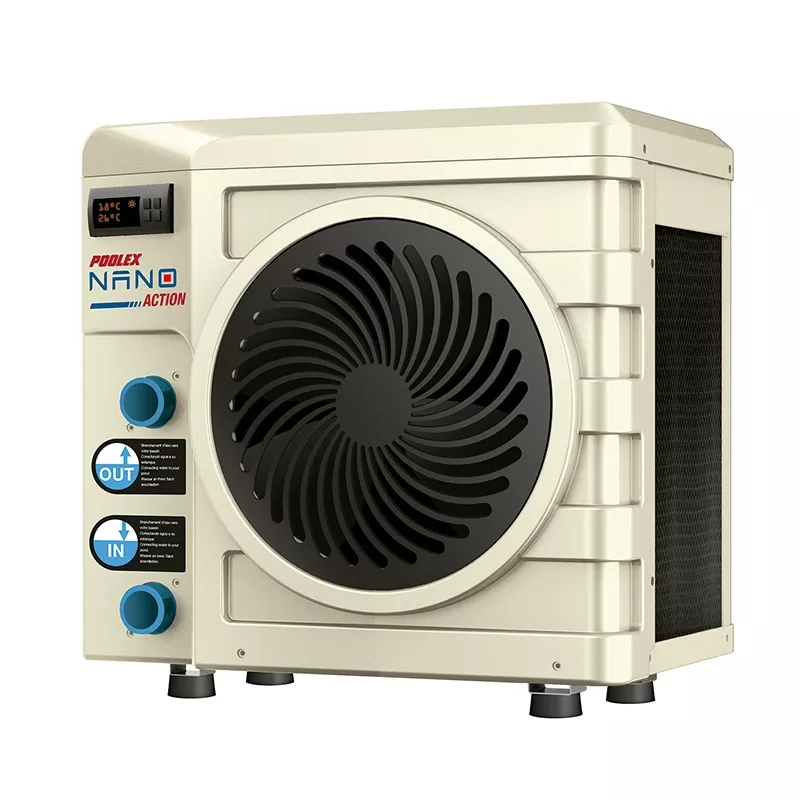

Heat pump Poolex Nano Action 3 R32
ref: 08BCPCNAN020
ean13: 3700691414434
sku: PC-NANO-A3
- Nano Action 3 Heat Pump
- Manufacturer: PC-NANO-A3 Poolex
- Code: PC-NANO-A3
- Power: 2,21 KW (standard 15-26)
- Power: 3.01 KW (26-26 standard)
- Compact design
- Ø32-38 mm connections
- Toshiba rotary compressor and titanium heating element
- R32 refrigerant fluid
- Electrical system with protection
- Efficient and quiet
- Ideal for pools up to 20 m3
- Warranty: 3 years
€365.00
€429.01
-€64.01
Free shipping
Bought together Usually
Actual product
Items:
1
Total price:
€365.00
Technical characteristics
Heat pump Poolex Nano Action 3 R32
why buy a pool heat pump?
The main reason why you should buy a heat pump for your pool is because this device will allow you to have a good swim no matter what time of the year you want to enjoy it.
It doesn't matter if it's too hot or too cold in the air, as you will be able to have the ideal water temperature. On top of that, these pumps also keep your pool water much cleaner, so you don't have to change the water as often!
It will also be a relief for your budget, as by keeping the pool water in perfect condition, you will spend less on water, electricity and products for pool analysis and maintenance.
MAIN CHARACTERISTICS
- Power: 2.21 KW (standard 15-26).
- Compact design.
- Ø32-38 mm connections.
- Toshiba compressor and titanium resistance.
- Electrical system with protection.
- Efficient and silent.
- Ideal for pools up to 20 m3.
- Warranty: 3 years in accordance with Royal Decree Law 7/2021 of 27 April.
GENERAL CHARACTERISTICS
- CE certified and compliant with the European RoHS directive.
- High performance with energy savings of up to 80% compared to other conventional heating systems.
- Clean, efficient and environmentally friendly R32 refrigerant fluid.
- Large hydrophilic aluminium condenser for use at low temperatures.
- Intuitive, user-friendly control panel.
- Highly resistant housing, with anti-UV treatment and easy maintenance.
- Silent design.
Plug & Play
Thanks to its Plug & Play functionality, the Nano Action heat pump can be installed quickly with a simple connection to a power socket. A bypass is not necessary. The 5 metre long cable is equipped with a 10 mA residual current protection to ensure safe operation.
Ultra compact
The Nano Action heat pump is discreet thanks to its small dimensions of 40.4 cm wide and 38.5 cm high. It can be installed next to the pool as it blends in perfectly with its surroundings.

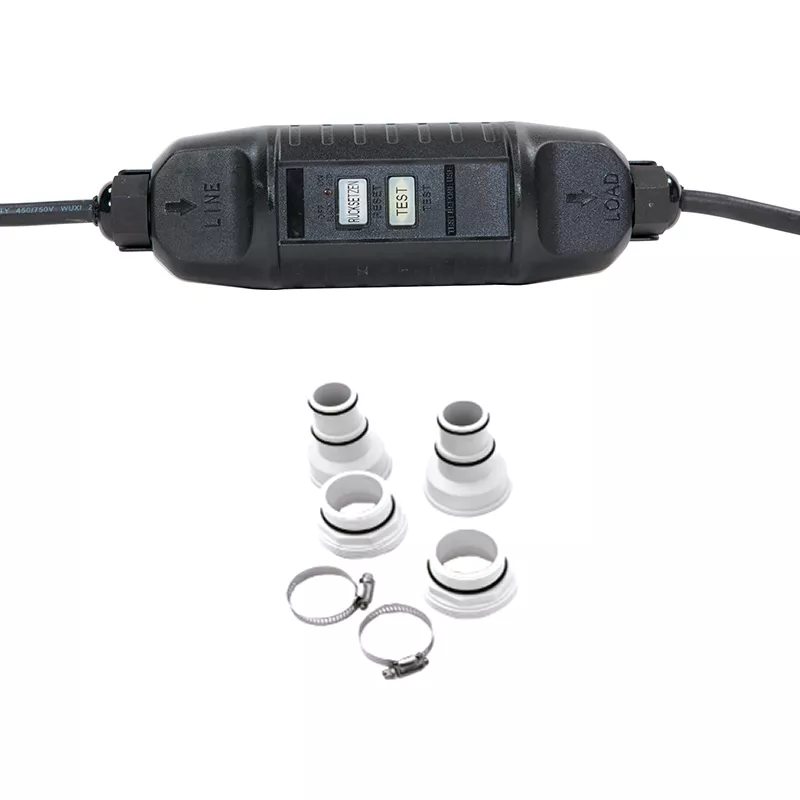

Included accessories
Electrical socket with differential protection
PVC connectors 32-38mm
Instruction manual in several languages
Reinforced and printed packaging
Thermal study
Heating and cooling is a more complex issue than is usually thought. The equipment to be installed depends both on what the customer wants and the environmental conditions of the pool.
For this reason, in order to determine which model is the most suitable, Quimipool recommends carrying out a thermal study beforehand. Contact us and we will ask you for the necessary data to carry out the thermal study and thus offer you the most suitable heat pump for your needs and for your pool.
 |
 |
||
| Nano Action 3 R32 | Nano Action 3 R32 Reversible | ||
Air 26ºC Water 26ºC Humidity 80% |
Capacity (W) | 3010 | 3000 |
| Consumption (W) | 540 | 600 | |
| COP | 5.61 | 5 | |
Air 15ºC Water 26 ºC Humidity 70% |
Capacity (W) | 2210 | 2200 |
| Consumption (W) | 540 | 560 | |
| COP | 4.09 | 3.93 | |
| POWER SUPPLY | Mono 230V / 50 Hz | Mono 230V / 50 Hz | |
| HEATING TEMPERATURE RANGE | 15ºC / 40ºC | 15ºC / 40ºC | |
| OPERATING RANGE | 8ºC / 43ºC | -5ºC / 43ºC | |
| MAX. POWER (W) | 930 | 900 | |
| FLOW RATE (m3/h) | 1.3 | 2 | |
| REFRIGERANT | R32 | R32 | |
| NOISE AT 1m. (dB(A)) | |||
| NOISE AT 10m. (dB(A)) | |||
| COMPRESSOR TYPE | Rotary | Rotary | |
| COMPRESSOR BRAND | Toshiba | Toshiba | |
| HEAT EXCHANGER | Twisted Tech Titane | Twisted Tech Titane | |
| FUNCTION | Heating | Heating / Cooling | |
Data Sheet
- Type of current
- Single-phase 220V
- Power input (at 15ºC)
- 0 - 3 kw
- Manufactured in
- Titanium
