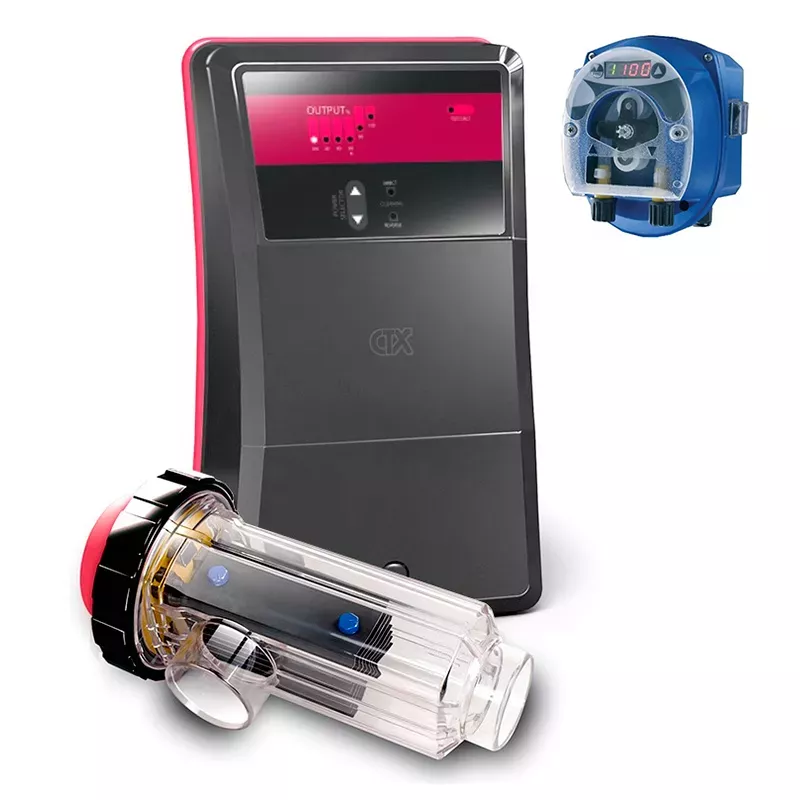

Salt chlorinator CTX Go Salt GS-21 with pH regulator Seko Dinamik
ref: 01EQCS70287ES
- Salt water chlorinator CTX Go Salt GS-21
- Output: 21 g/h
- Manufacturer: CTX
- Easy installation and operation
- External ORP control
- Cell with up to 10.000 hours of life time
- Transparent cell with parallel input and output
- Salt level alarms (high and low)
- Warranty: 2 years
- PH regulator includes probe, pH7 solution and collar
€1,128.00
Free shipping
Technical characteristics
CHARACTERISTICS SALT CHLORINATORCTX Go Salt
- External ORP control.
- Longer life of the electrolysis cell (10,000 hours).
- Transparent cell with parallel input and output.
- Salt level alarms (high and low).
- Covered status input.
- ADVANTAGES:
- Economic
- Easy installation and operation - Recommended salinity: 5-6 g/l.
- ABS housing.
- Reverse polarity every 2-3 hours.
- Flow detector.
- Production control by blanket: 1 level.
- External production control: 2 levels.
ELECTROLYSIS CELL
- Self-cleaning titanium electrodes.
- Pipe connection: PVC gluingØ63 mm.
- Minimum flow: 5 m/h.
- Number of electrodes: 7.
Features Peristaltic pH Regulator Pump Seko Dinamik
- Peristaltic pH-regulating dosing pump
- Flow rate 1,5 l/h at 1,5 bar
- Acid or alkaline dosing option
- PH measuring range: 6 to 8 (sensitivity of 0.1)
- A calibration point at pH7
- BNC connector with protection
- 4-digit 7-segment display
- 3-position switch: On, ON and Stand By
- It includes:
- pH probe
- calibration solution pH7
- complete installation kit - Collars not included (2 pcs. required for installation)
 |
|
|
|
|
|
| Go Salt GS-7 | Go Salt GS-12 | Go Salt GS-21 | Go Salt GS-30 | Go Salt GS-40 | |
| Supply voltage | 230 Vac - 50 Hz / 60 Hz | 230 Vac - 50 Hz / 60 Hz | 230 Vac - 50 Hz / 60 Hz | 230 Vac - 50 Hz / 60 Hz | 230 Vac - 50 Hz / 60 Hz |
| Consumption | 0.2 A | 0.4 A | 0.4 A | 0.8 A | 0.9 A |
| Production | 6-7 g/h | 10-12 g/h | 17-21 g/h | 24-30 gr/h | 31-40 gr/h |
| Salinity | 5-12 g/l | 5-12 g/l | 5-12 g/l | 5-12 g/l | 5-12 g/l |
| Envelope | ABS | ABS | ABS | ABS | ABS |
| No. of electrodes | 5 | ||||
| Polarity reversal | Yes | Yes | Yes | Yes | Yes |
| Production control | 0-100% (5 levels) | 0-100% (5 levels) | 0-100% (5 levels) | 0-100% (5 levels) | 0-100% (5 levels) |
| Flow detector | Yes | Yes | Yes | Yes | Yes |
| Flow switch detector | No | No | No | No | No |
| Production control by blanket | 1 level | 1 level | 1 level | 1 level | 1 level |
| External production control | 2 levels | 2 levels | 2 levels | 2 levels | 2 levels |
| Electrode diagnostics | No | No | No | No | No |
| Safety shutdown pH | Yes | Yes | Yes | Yes | Yes |
| Salinity test | No | No | No | No | No |
| Salt alarm indicator | Yes | Yes | Yes | Yes | Yes |
| System configuration menu | No | No | No | No | No |
| Remote control | No | No | No | No | No |
| Modbus & Poolstation | No | No | No | No | No |
Data Sheet
- gr/hour CL
- 20-24 g/hour
- With pH control
- Yes
- Pump type
- Peristaltic
- Allows level control
- Yes
- Pump control
- Digital
- Automatic control of
- pH
