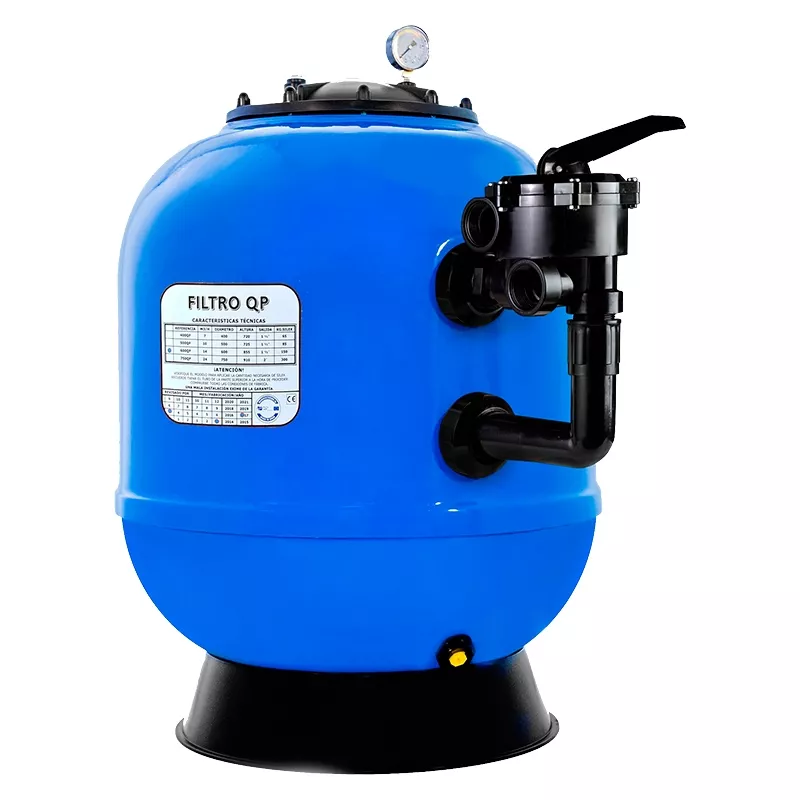

Laminated swimming pool filter QP Azur 500
ref: 06FI540004AZ
ean13: 8410189048076
sku: 540004AZ
- Swimming pool filter Azur series
- Manufacturer: Productos QP
- Code: 540004AZ
- Diameter: 500 mm
- Material: high resistance laminated polyester
- Includes 6-way selector valve of 1" 1/2
- Complete with pressure gauge, drain plug and ABS lid
- Stabilising base
€349.00
Free shipping
Technical characteristics
QP Azur 500 swimming pool filter system
The QP Azur filter is a high resistance polyester laminated filter.
It includes all the elements for a correct functioning of the filtration system. It incorporates a pressure gauge and a matt black ABS cover with screws on the upper part. In the lower part it has a drain plug, as well as a stabilisation base.
It is supplied with a 6-way selector valve of 1" 1/2.
MAIN CHARACTERISTICS
- Diameter: 500 mm
- Filtration capacity: 10,000 l/h
- Filtration speed: 50 m3/h
- Maximum working pressure: 2,5 kg/cm2
- Sand load: 100 kg
- Glass load: 80 kg
- Crepins: 8 units of 140 mm
Top cover with screws
6-way selector valve 1" 1/2
Pressure gauge
Product manufactured at España
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming.
Commissioning
Once the sand filter has been filled (see manual), proceed as follows:
1. Open the valves on the suction pipes leading to the pool (skimmer and drain).
2. Turn the selector valve to the RINSE position.
3. Switch on the pump for 5 minutes.
4. Stop the pump and switch the selector valve to the RINSE position.
5. Reconnect the pump for 1 minute.
6. Stop the pump and switch the selector valve to the FILTRATION position.
The filter is now ready for operation.
Functions of the selector valve
Data Sheet
- Recommended pool size
- 20-50 m3
- Filter diameter
- 500 mm
- For pumps
- 0.5 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 50 - 100 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
