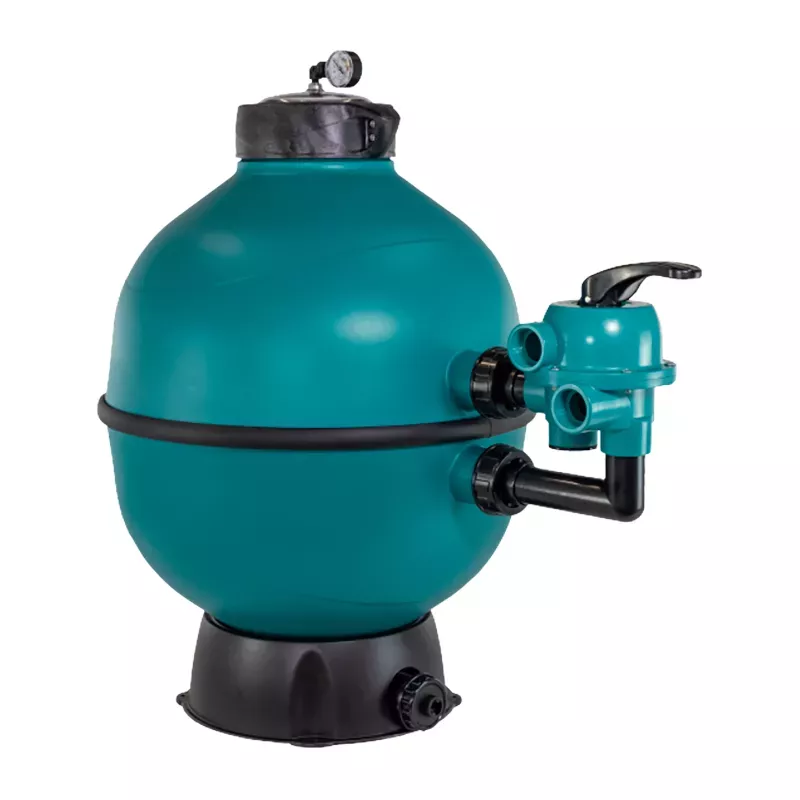

Pool filter ESPA Filterkit Plus FKP 760 6LT diameter 760 mm
- FilterKit Plus Series Pool Filter
- Manufacturer: ESPA
- Code:130908
- Diameter 720 mm
- Made of polypropylene resistant to chemical and atmospheric agents
- INCLUDES 6-WAY SELECTOR VALVE OF 2"
- Pressure gauge on top
- Transparent cover for easy visual inspection of the filter interior
- ESPA quality and reliability
Technical characteristics
what is filtration?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, as an outstanding element, is the filter, since it is in charge of, as the water circulates through its interior, retaining the dirt particles in its filtering bed, either sand or glass, to later return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimize to the maximum the performance of our filtration system and enjoy crystal clear water suitable for swimming
Filter FKP 760 6LT
- Recommended for pools up to 175 m3.
- Equipped with pressure gauge and air-water purge.
- Includes 6-way 2" selector valve.
- Mounted thermal welding
- Filter made of two pieces of polypropylene joined by thermal welding
- Maximum flow rate: 21 m3/h.
- Double drainage at the bottom of the filter: 1½" for total emptying of the filter; 1/2" for emptying the water without loss of sand.
- Transparent cover for easy inspection of the filter in side version.
- Sand load: 300 kg.
- Glass load: 240 kg.

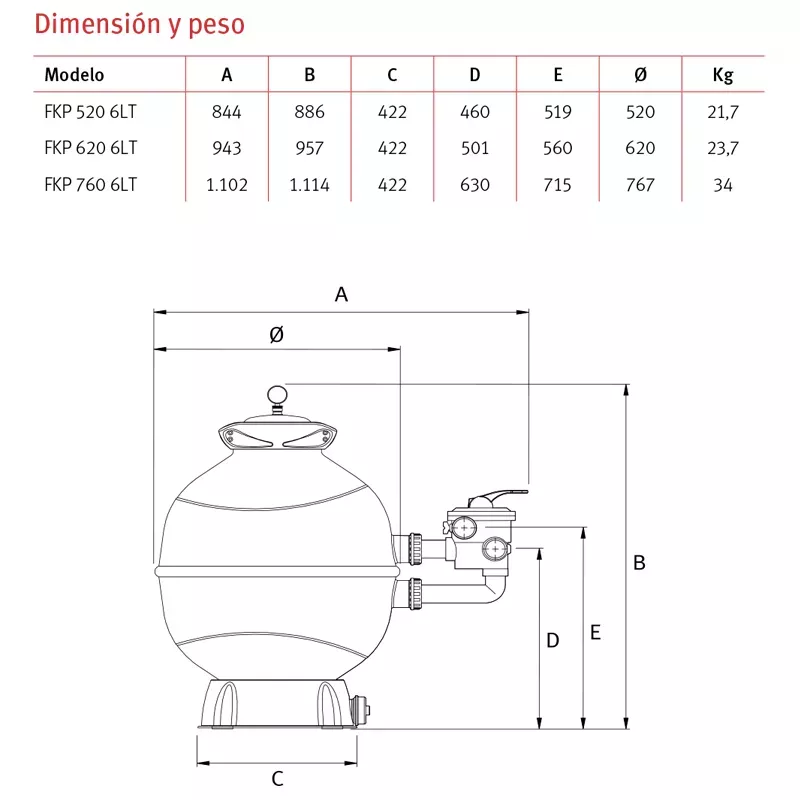

FKP 520 | FKP 620 | FKP 760 | |
Diameter (mm) | 520 | 620 | 760 |
Connections | 1'' 1/2 | 1'' 1/2 | 2'' |
Flow rate (m3/h) | 10 | 14 | 21 |
Sand load (kg) | 85 | 145 | 300 |
Net weight (kg) | 21,7 | 23,7 | 34 |
WARRANTY | 3 years | 3 years | 3 years |
Data Sheet
- Recommended pool size
- Filter diameter
- For pumps
- 1.5 HP
- Valve
- Side 2
- Sand load (kg)
- 250 - 300 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
