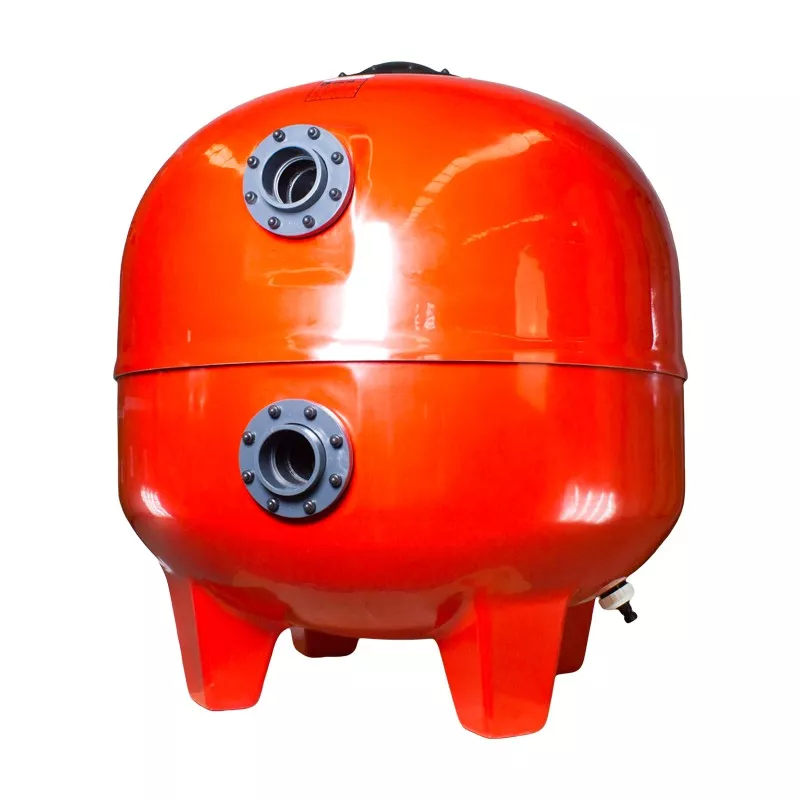

Industrial filter diameter 1.200
ref: 06FI01001411
ean13: 8410189003242
sku: 510001
- Dimensions 1.200 mm ø and 1.300 mm height
- Made of polyester resin and fibreglass
- Lid made of plastic material fixed with screws
- Internal filtration system by means of PVC collector arms
- Connections at 75mm (2 1/2")
- 1100 Kg of silex sand and 300 Kg of gravel NOT INCLUDED
- The battery of 5 butterfly valves and the pressure gauge panel should be included separately
Technical characteristics
Industrial filter
Laminated filter made of resin and fibreglass. Totally anti-corrosive, with PVC collectors and diffusers
Characteristics Filter:
- 1,200 diameter filter.
- Filtration capacity: 22,000 litres/hour.
- Outlet: 2 ½" - 75 mm.
- Height: 1.300 mm.
- Kg. of flint sand: 1.100 (not included).
- Kg. of gravel: 300 (not included).
- Maximum temperature 50ºC.
- Maximum working pressure 2.5 Kg/cm2.
- FILTRATION SPEED: 20 M3/H/M2.
The battery of 5 butterfly valves and the pressure gauge panel would have to be included separately.
These filters can be supplied with speeds of 30, 40 and 50 m3/h/m2.
Data Sheet
- Filter diameter
- 1200 mm
- Sand load (kg)
- Over 1,000 kg
- Material
- Laminated polyester
