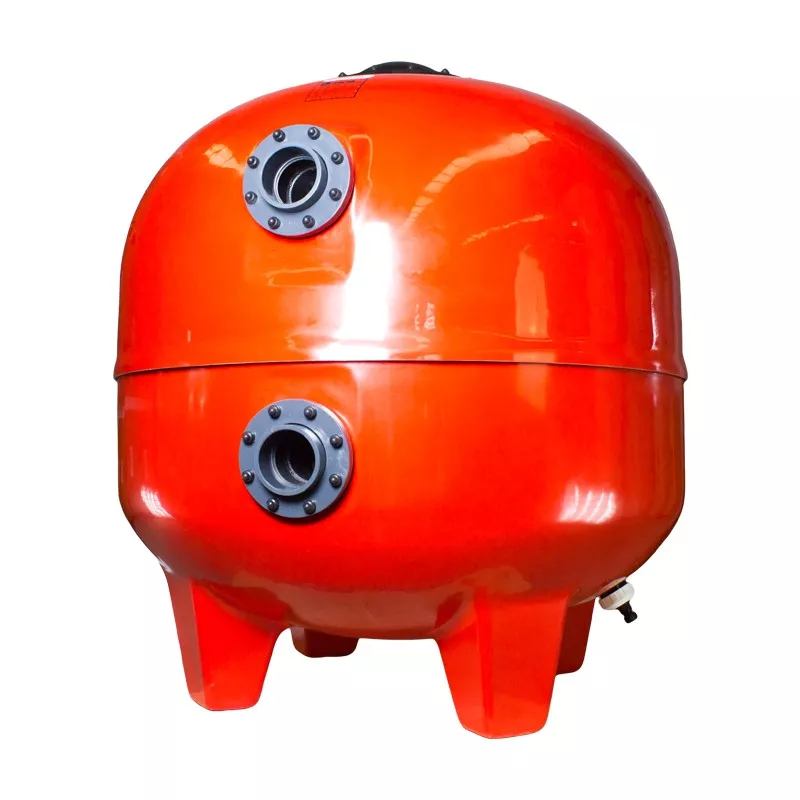

Industrial filter diameter 1.600
ref: 06FI01001413
ean13: 8410189003266
sku: 510005
- Dimensions 1.600 mm ø and 1.700 mm height
- Made of polyester resin and fibreglass.
- Lid in plastic material fixed with screws
- Internal filtration system by means of PVC collector arms
- Connections at 90 mm ø ( 3" )
- Load of silex sand 1800 Kg and 750 of gravel NOT INCLUDED
- The battery of 5 butterfly valves and the pressure gauge panel should be included separately
Technical characteristics
Industrial filter
Laminated filter made of resin and fibreglass. Totally anti-corrosive, with PVC collectors and diffusers.
Characteristics Filter:
- 1,600 diameter filter.
- Filtration capacity: 40,000 litres/hour.
- Outlet: 3" - 90 mm.
- Height: 1.700 mm.
- Kg. of flint sand: 1.800 (not included).
- Kg. of gravel: 750 (not included).
- Maximum temperature 50ºC.
- Maximum working pressure 2.5 Kg/cm2.
- FILTRATION SPEED: 20 M3/H/M2.
The battery of 5 butterfly valves and the pressure gauge panel would have to be included separately.
These filters can be supplied with speeds of 30, 40 and 50 m3/h/m2.
