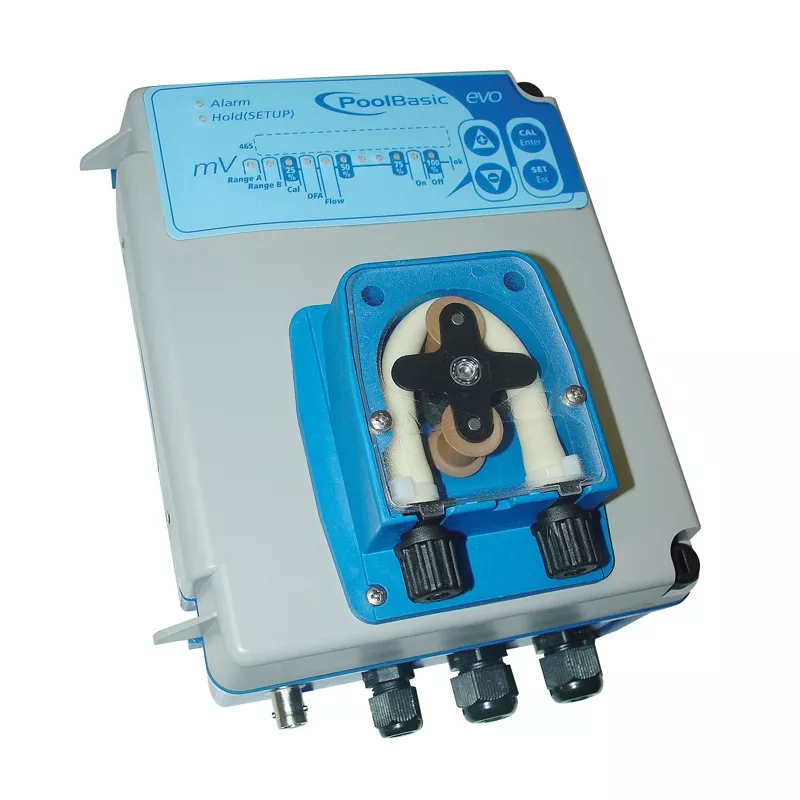

Automatic chlorine control (Redox) 1.5 l/h
- Automatic chlorine (redox) control Seko mod. Pool Basic
- Peristaltic dosing pump 1.5l/h and 1.5bar
- Suitable for small space installations
- LED display of the readings
- Minimal maintenance
DISCONTINUED PRODUCT. See the new range of Seko here.
Bought together Usually
Technical characteristics
Chlorine control and regulation system using Redox technology.
Pool Basic is the product preferred by most private pool users. Small in size, it is designed to avoid the siphon effect, minimum maintenance, easy to install and resistant to chemical splashes.
Technical Data Pool Basic Seko Chlorine (Redox)
- Rx reading ranges: 480.... 750, 660...930 mV
- Peristaltic pump flow rate: 1.5 l/h at 1.5 bar.
- Power supply: 230 Vac. 50-60 Hz.
- Plastic enclosure IP55.
- Suitable for installations where space is limited.
- LED reading indication
- Self-calibration, electrode quality indication and HOLD function.
- Supplied with all the accessories for a simple and appropriate installation: Rx probe, threaded probe holder, D.50 to 1/2" collars, impulsion Racord, suction filter, 465 mV buffer solution, suction and impulsion tubes and installation manual.
what is Redox?
The redox potential gives an idea of the state of equilibrium between the oxidising and reducing components of a product. The redox potential is measured in a similar way to the pH value. However, instead of a pH-sensitive glass membrane, a platinum or gold electrode is used. Also, similar to the pH measurement, an integrated Ag/AgCl reference system is used as reference electrode.
ORP meter.
Oxidation is a process in which a molecule or ion loses electrons. This happens very easily in water treatment as well as in the maintenance of swimming pools and spas where an oxidant such as chlorine is added to the water to destroy contaminants. The more positive the ORP value, the greater the sterilising power of the water. The ORP tester can provide valuable information about water quality.
Data Sheet
- Pump type
- Peristaltic
- Allows level control
- No
- Pump control
- Analogue
- Automatic control of
- Chlorine Redox
