Multiflow discharge nozzle d.50 and d.63 PN.6
ref: 03BO00298
ean13: 8420382011913
sku: 00298

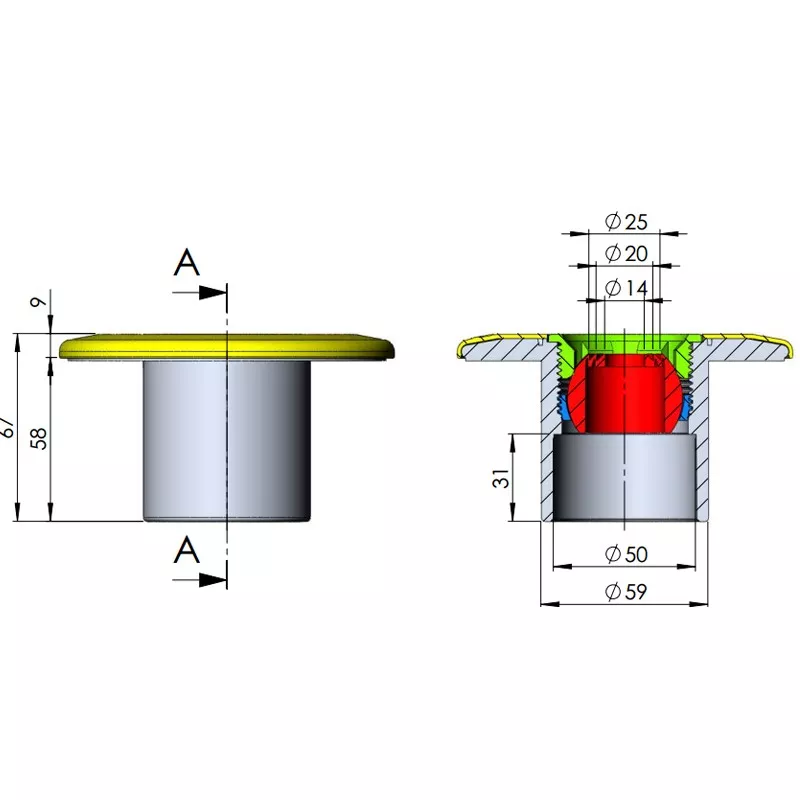

- For external glueing Ø 63 mm, PN 6 and internal glueing Ø 50 mm
- This system consists of the nipple ball being supplied pre-marked with a range of diameters (14-20 and 25).
- With the help of a punch one of the diameters can be selected at the time of installation.
€9.95
Free shipping
Technical characteristics
Discharge nipple Astralpool 00298
For external Ø 63 mm, PN 6 and internal Ø 50 mm. This system consists of the nipple ball being supplied pre-marked with a range of diameters (14-20 and 25). With the help of a punch, one of the diameters can be selected at the time of installation.
Max. recommended flow rate for a max. flow velocity of 4 m/sec. according to UNE 13451-1:
- Ø14= 2,2 m3/h.
- Ø20 = 4,5 m3/h.
- Ø25 = 7 m3/h.
Made of white ABS. Installation with wall bushing recommended
ref.: 15661-15660.
The grille holes do not exceed 8 mm according to UNE 13451-1.
Data Sheet
- Coating
- Concrete
- Manufactured in
- Plastic
- PN
- 6
- Type of accessory
- Discharge nozzle
