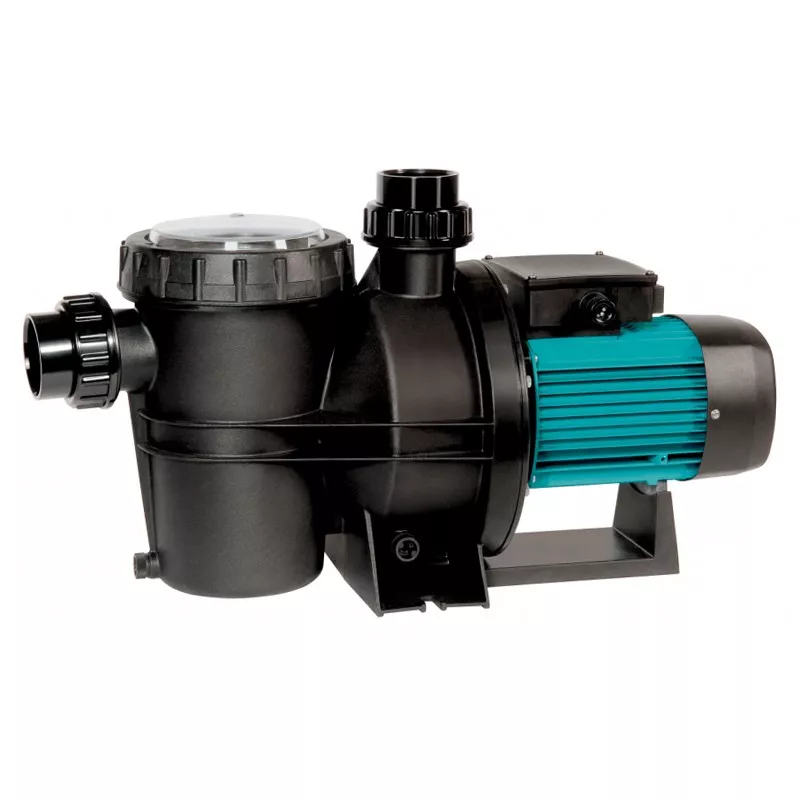

Swimming pool pump Espa Silen 2 100M

Pump discontinued. It is replaced by the ESPA SILEN S2 100 24M.

Characteristics of the swimming pool pump Espa Silen 2 100M.

• 1 HP pump, SINGLE-PHASE.
• Suction diameter: D63
• Impulsion diameter: D63
• Watertightness by: Mechanical seal
• Stages: Single-stage centrifugal pump
• Motor cooling: Fan
• Suction connection type: Push-in fitting
• Type of connection on discharge side: Push-in fitting
• Impeller type: Closed

Materials:

• Inlet diameter: D63
• Discharge diameter: D63
• Sealing by: Mechanical seal
• Stages: Single-stage centrifugal pump
• Motor cooling: Fan
• Suction connection type: Push-in fitting
• Type of connection on discharge side: Push-in fitting
• Impeller type: Closed

Motor (Electrical characteristics):

• Electrical insulation: Class F
• Service factor: S1
• Degree of protection: IP55
• Reset: Automatic
• Motor type: Asynchronous
• Motor rotation type: Constant speed
• Service type: Continuous

Operating limits

• Maximum number of motor starts (starts/minute): 0,5
• Maximum working pressure (bar): 12
• Liquid temperature (ºC): Min: 4 - Max: 35

Checks prior to initial start-up of the pool pump:

Once the connections defined in the previous section have been made, unscrew the relevant filter cover and fill the pump pre-filter with water up to the lower level of the suction pipe.

• Check that the pump shaft rotates freely.
• Check that the mains voltage and frequency correspond to those stated on the nameplate of the pump.
• Replace the pre-filter cover and screw it back in place as required.
• Check that the direction of rotation of the motor corresponds to that indicated on the fan cover. On three-phase motors, if the direction of rotation is incorrect, reverse two power supply phases on the protection panel.
• If the motor does not start, try to find the fault by referring to the list of the most common faults and their possible solutions on the following pages.

NEVER RUN THE PUMP DRY.

Starting the pool pump Espa Silen 2 100M.

• Open all gate valves and energise the motor.
• Wait a reasonable time for the pipe to self-prime.
• Check the current draw and adjust the thermal relay accordingly.

Maintenance of the swimming pool pump Espa Silen 2 100M.

• Pool pumps do not require any specific maintenance. However, it is recommended to clean the pump filter periodically, empty the pump body during periods of low temperatures by means of the drain plug.
• If inactivity persists, it is advisable to empty the pump of water, clean it and replace the filter cover with vaseline on the rubber gasket, making sure that the room where it will be stored remains dry and ventilated.
• In the event of a fault, the user must not tamper with the pump. Contact an authorised technical service.
• When it is time to dispose of the pump, it does not contain any toxic or polluting material.

	MODEL	VOLT.	INTEN.	ABSORBED POWER (kW)	MOTOR POWER (kW)(HP)	CONDENSER	RACORD
	SILEN2 50M	230V	4.10A	0.90 kW	0.50kW-0.67HP	25µF	Gluing 63mm
	SILEN2 75M	230V	4.40A	1.00kW	0.55kW-0.74HP	25µF	Ecolar 63mm
	SILEN2 100M	230V	7.00A	1.50kW	1.10kW-1.47HP	25µF	Gluing 63mm
	SILEN2 150M	230V	8.50A	1.90kW	1.10kW-1.47HP	25µF	Glue 63mm
	SILEN2 200M	230V	9.70A	2.20kW	1.50kW-2.01HP	30µF	Ecolar 63mm
	SILEN2 300M	230V	12.50A	2.80kW	2.20kW-2.95HP	60µF	Glue 63mm
