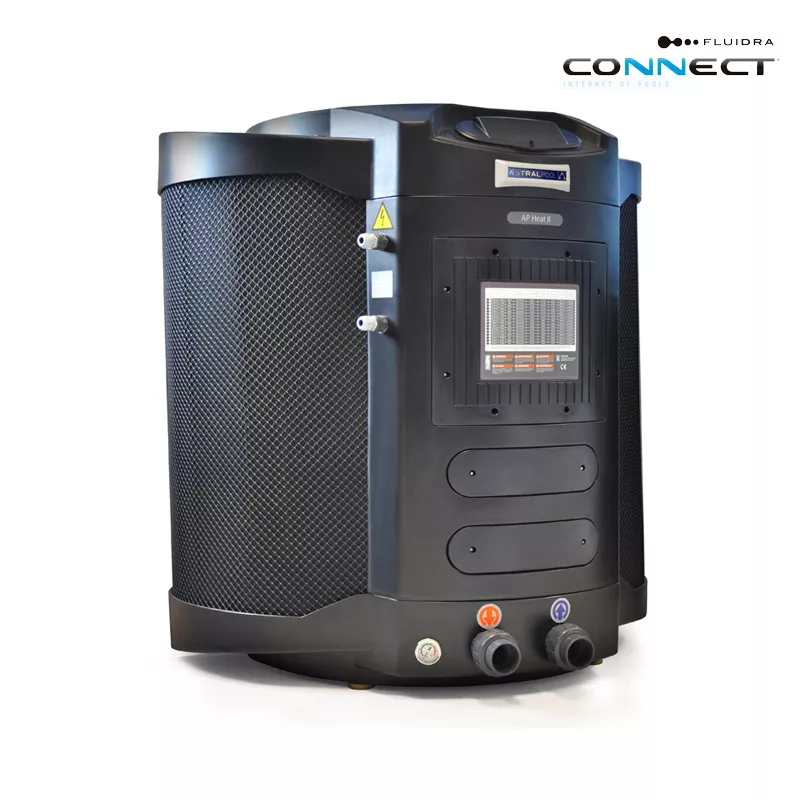

Heat pump Astralpool Heat II B300 T
ref: 08BC54075
- Three-phase heat pump.
- Power input (at 15ºC): 5.3KW input and 26KW output.
- Titanium condenser.
- Control it with the FLUIDRA CONNECT App.
- Free start-up.
- You need: Connect Box
hEAT PUMP DISCONTINUED!
We recommend you to visit our Heat Pumps section
Free shipping
Technical characteristics
Air/water heat pump for heating the pool basin. This makes it possible to extend the bathing season by using the free calories from the outside air.
LAFREE START-UPAT YOUR HOME, LABOUR AND TRAVEL INCLUDED (installation not included).
Contents of the shipment:
- Astrapool Heat II heat pump
- Remote control
- Assembly instructions
What's new compared to the heat pump? Astralpool Heat:
Energy Saving.
EOM mode operation: The EOM (Efficient Operation Mode) is based on knowing the energy efficiency of the machine while it is in operation. In order to know the overall performance of the machine in real time, the electronic card reads the appropriate parameters and sensors, performs the relevant calculations and adjusts to the optimum performance for each installation.

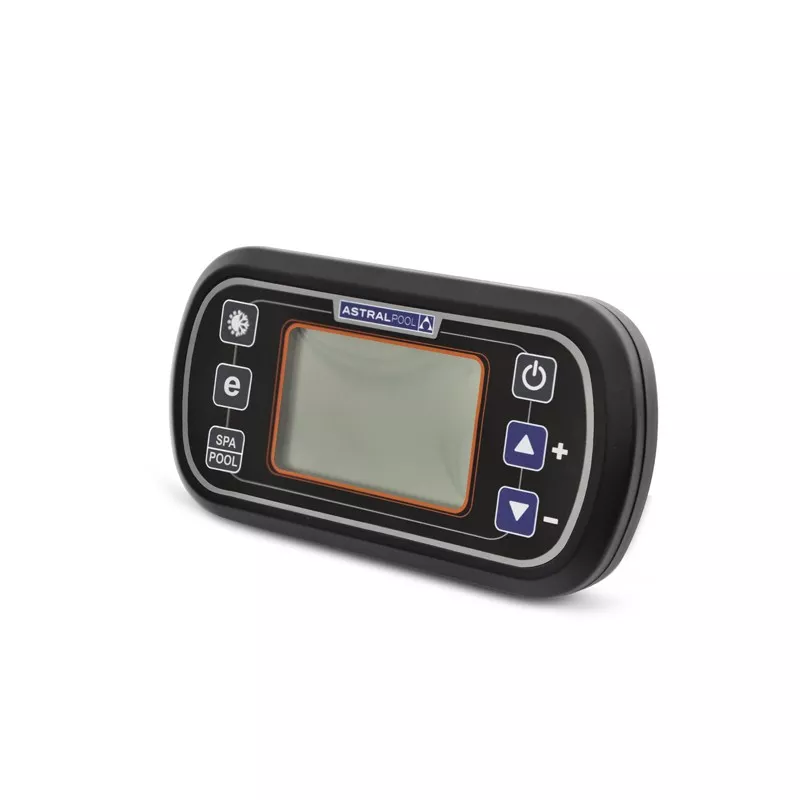

Wireless remote control that communicates by radio frequency, by means of which we can have total control of the equipment such as switching the machine on and off, selection of heating or cooling mode (optional), selection of ECO or EOM operating modes, selection of POOL or SPA heating (optional), modify setpoint, pool and outdoor temperature reading, alarm messages and flow rate signal. Control included
History of alarms and fault diagnosis: The equipment is provided with a history of alarms and fault diagnosis in order to be more effective in technical assistance and to have the equipment information available anywhere.
Domotisation. Modbus communication: Remote control with functions such as: start-stop, raise-lower degrees, heating-cooling, choose Filtration or Comfort, choose energy saving (between: ECO, EOM or none).

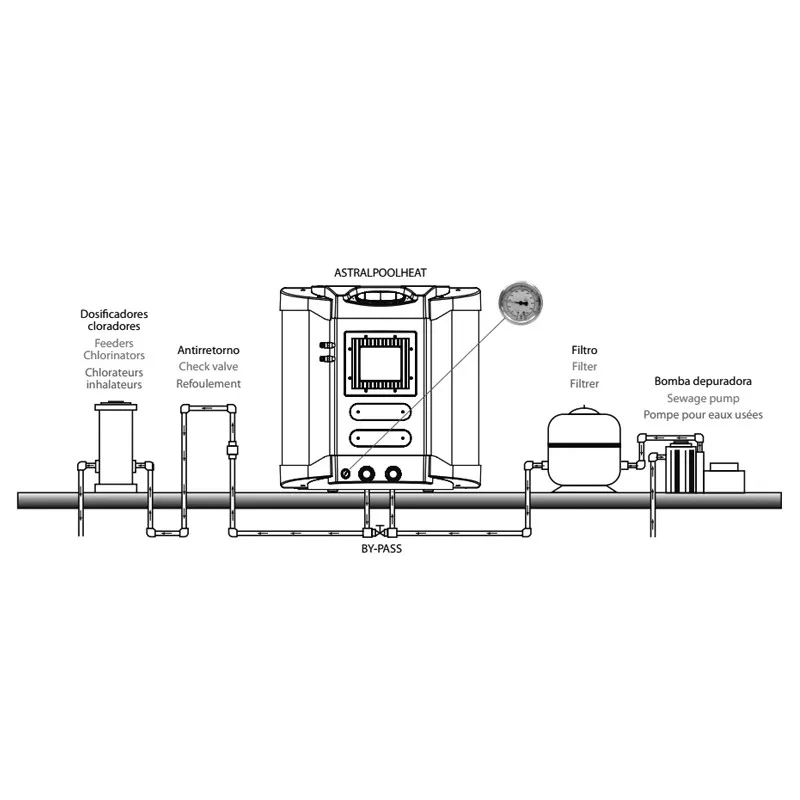

Possibility of heating a swimming pool or spa: Optional heating of a swimming pool or spa with the same equipment and control of the three-way valves (not included) and the purifying system.
General characteristics of the heat pump Astralpool Heat II B300 T.
- Robust and lightweight design in ABS + UV injected, resistant to solar radiation. The colour does not fade.
- Large-area, high-performance evaporator coil (gas-air heat exchanger) made of copper tube and lacquered aluminium fins, especially for corrosive and coastal environments.
- Axial fan with direct-coupled motor.
- SCROLL compressor with internal protection.
- Titanium condenser consisting of PVC casing and TITANIUM G2 coil according to ASTM B 338.99 standard. Guaranteed against corrosion.
- Full charge of R-410A refrigerant gas.
- A nitrogenised, dehydrated and deoxidised copper refrigeration circuit.
- High and Low Pressure Mini Pressure Switches (AP/BP) with automatic reset.
Other features of the heat pump Astralpool Heat II B300 T.
- Expansion by means of thermostatic valve with external balancer.
- Filter drier.
- Hydraulic circuit with flow switch at the water inlet, made of PVC pipe, good elasticity and remarkable resistance to cracking under tension, a fundamental characteristic for the transport of hot liquids under pressure.
- Complete electrical panel with highly sensitive digital regulation and control of the purifier. Keypad lock. Protective display cover.
- Intelligent Heat: System that automatically maintains the pool and/or spa at the desired temperature by controlling the filtration system.
- Phase monitor: Protects the compressor in case of phase loss or phase reversal.
- Defrost: By activating the fan, the unit defrosts the evaporator.
- New ECO System: In periods of shutdown of the installation, it maintains this with a temperature differential lower than the setpoint temperature. Energy saving.

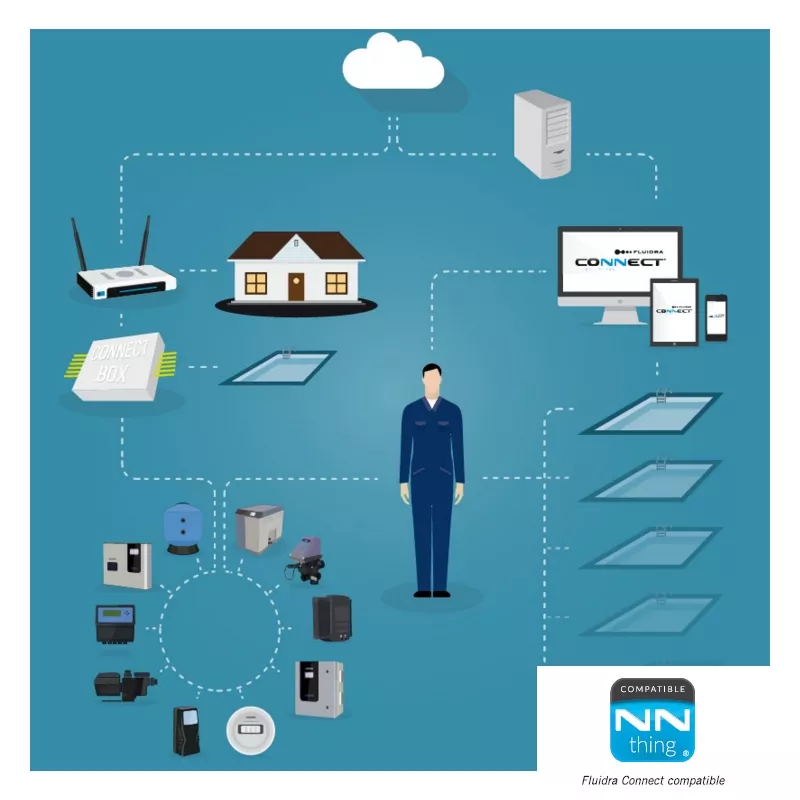

What is Fluidra Connect?
Fluidra Connect is the intelligent solution that allows the pool to be controlled remotely by the end user and/or the professional. Giving the possibility to diagnose, manage and control all your installations from a computer screen.
Fluidra Connect allows two control modes:
- Basic and intuitive end-user control via the App.
- Advanced control for the professional through the platform www.fluidraconnect.com
What do I need to install it in my pool?
There are 3 options:
1) CONNECT BOX. For Fluidra Connect compatible products, the Connect Box is the brain of the pool. Any installation to be managed via Fluidra Connect requires a Connect Box that must be connected to the internet via WiFi or cable.
2) GPIO. For products that are not compatible with Fluidra Connect, this device offers a solution with 4 outputs and 4 digital inputs. The GPIO allows us to ON/OFF and perform time programming on non-compatible products. It also allows us to see the status of some equipment.
3) FLUIDRA CONNECT COMPATIBLE COMMUNICATION KIT. Some products support the installation of this kit to become compatible with Fluidra Connect.
Technical characteristics of the heat pump Astralpool Heat II B300 T
 |
|
|
|
|
|
|
|
||
| Basic | B100-M | B150-M | B150-T | B200-M | B200-T | B250-M | B250-T | B300-T | |
| Code | 54068 | 54069 | 54070 | 54071 | 54072 | 54073 | 54074 | 54075 | |
| Reversible | R100-M | R150-M | R150-T | R200-M | R200-T | R250-M | R250-T | R300-T | |
| Code | 54078 | 54079 | 54080 | 54081 | 54082 | 54083 | 54084 | 54089 | |
| Voltage | 230/2/50Hz | 230/2/50Hz | 400/3/50Hz | 230/2/50Hz | 400/3/50Hz | 230/2/50Hz | 400/3/50Hz | 400/3/50Hz | |
| Heat exchanger | Titanium | ||||||||
| Compressor | Scroll | ||||||||
| Cupboard | ABS | ||||||||
| Refrigerant R-410A | B100-M | B150-M | B150-T | B200-M | B200-T | B250-M | B250-T | B300-T | |
| 1,2 kg | 1.6 kg | 1.6 kg | 1.88 kg | 2,0 kg | 2,0 kg | 2,0 kg | 2,3 kg | ||
| Refrigerant R-410A | R100-M | R150-M | R150-T | R200-M | R200-T | R250-M | R250-T | R300-T | |
| 1.8 kg | 1,9 kg | 1,9 kg | 2,2 kg | 2,2 kg | 2,2 kg | 2,2 kg | 2.7 kg | ||
| High pressure alarm | 18 - 24 bar / 260 - 350 psi | ||||||||
| Low pressure alarm | 0.7 - 2.2 bar / 10 - 32 psi | ||||||||
| Optimal water flow | 12 m3/h | ||||||||
| Minimum water flow rate | 6 m3/h | ||||||||
| Air flow rate | 3500 m3/h | 7000 m3/h | |||||||
| Noise level | 1 m | 67 dB | 70 dB | ||||||
| 3 m | 59 dB | 62 dB | |||||||
| Swimming pool connection | Ø 50 mm | ||||||||
| 27ºC Air temp | Input power kW | 2,4 | 2,7 | 2,7 | 3,9 | 3,9 | 5,2 | 5,2 | 6,2 |
| Power output kW | 11,1 | 15,1 | 15,1 | 26 | 26 | 30 | |||
| EOM | 4,63 | 5,69 | 5,69 | 5,1 | 5,1 | 5 | 5 | 4,8 | |
| 15ºC Air temp | Input power kW | 2,3 | 2,6 | 2,6 | 3,7 | 3,7 | 4,9 | 4,9 | 5,3 |
| Power output kW | 8,5 | 11,6 | 11,6 | 15,7 | 15,7 | 26 | |||
| EOM | 3,7 | 4,46 | 4,46 | 4,2 | 4,2 | 4,4 | 4,4 | 4,9 | |
| 5ºC Air temp | Input power kW | 2,2 | 2,5 | 2,5 | 3,5 | 3,5 | 4,8 | 4,8 | 5,2 |
| Power output kW | 5,5 | 7,6 | 7,6 | 10,3 | 10,3 | ||||
| EOM | 2,5 | 3,04 | 3,04 | 2,5 | 2,5 | 3,1 | 3,1 | 3,6 | |
| Recommended pool volume | m3 maximum | 35 | 48 | 65 | 89 | 103 | |||
| m3 minimum | 30 | 40 | 65 | ||||||
Calculations based on room temperature 27ºC and 60% RH - Flow rate 12 m3/h - Water 24ºC.
Data Sheet
- Type of current
- Three-phase
- Power input (at 15ºC)
- 25 - 27 kw
- Manufactured in
- Titanium
