Astrapool Aster D.350 Filter with Side Selector Valve

ref: 06FI00497
  • Astralpool swimming pool filter Aster series
  • Code 00497
  • Diameter 350 mm
  • Made of polyester resin and fibre glass
  • Quick-opening top cover
  • INCLUDES 6-WAY SELECTOR VALVE 1" 1/2.

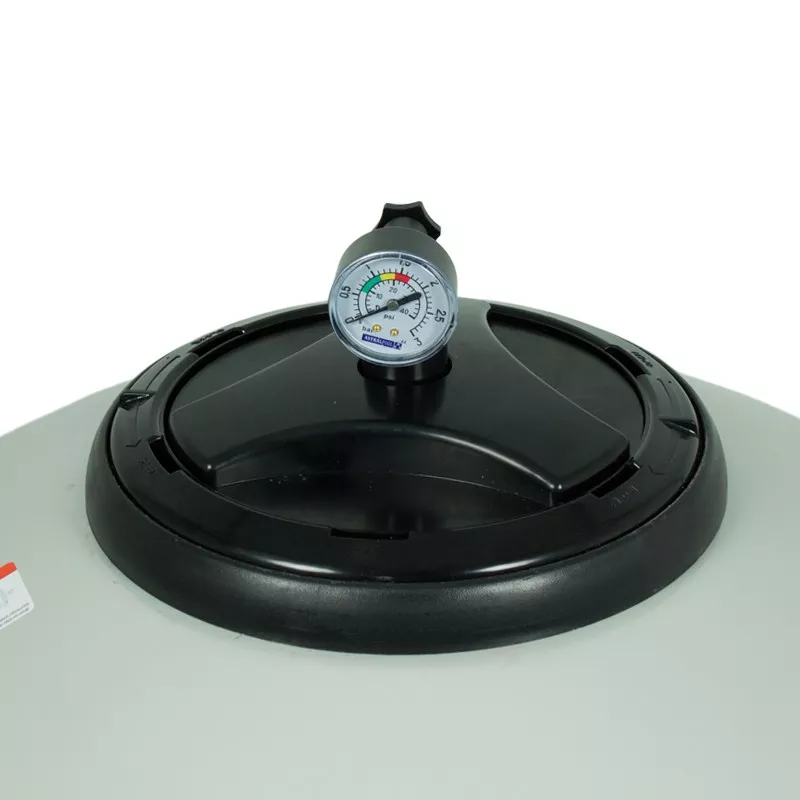

  • With pressure gauge, manual air and water purge
Questions about this product?
Discuss it with us and ask us. Our technicians will solve your doubts.
€523.00
Free shipping
Free Shipping + info

Technical characteristics

what type of pool is the Astralpool Aster D.350 recommended for?

Recommended for private pools up to 25 m3.

General characteristics of Astralpool Aster Filters

  • Laminated sand filters, in polyester resin and fibreglass, ivory colour.
  • It stands out for the use of 1" diameter collectors and diffuser made of unalterable plastic material PVC and PP.
  • Equipped with pressure gauge, manual air vent and manual water drain.
  • Six-way side selector valve for filtering, washing, rinsing, recirculation, emptying and shut-off operations.
  • Polypropylene base, except for 900 mm diameter, which is made of polyester resin and fibreglass.
  • Maximum filtration speed: 50m3/h/m2.
  • Maximum working pressure: 2.5 kg/cm2.
  • Screwless lid with quick opening and closing. Patented system

Delivery contents:

  • Aster filter
  • 1 1/2" selector valve
  • Pressure gauge, manual air vent and manual water drain kit

Filter dimensions Astralpool Aster with Side Selector Valve

Filtro Astrapool Aster D.600 con V Filtro Astrapool Aster D.600 con V Filtro Astrapool Aster D.600 con V Filtro Astrapool Aster D.600 con V Filtro Astrapool Aster D.900 sin V Filtro Astrapool Aster D.900 sin V Filtro Astrapool Aster D.900 sin V
ASTER 350 ASTER 450 ASTER 500 ASTER 600 ASTER 650 ASTER 750 ASTER 900
D (mm) 350 450 500 600 650 750 900
H (mm) 780 795 770 850 880 945 1050
M (mm) 420 430 415 455 480 555 660
N (mm) 295 305 290 330 355 325 390
Connections 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 2" 2" 1/2
Sand load (kg) 50 70 95 125 200 240 400
Flow rate (m3/h) 5 8 9 14 15 21 30
Max. working pressure (kg/cm2) 2,5 2,5 2,5 2,5 2,5 2,5 2,5
Net weight (kg) 12,5 15,5 18 21 24 30 51
WARRANTY 2 years 2 years 2 years 2 years 2 years 2 years 2 years 2 years 2 years

Data Sheet

Recommended pool size
20-50 m3
Filter diameter
350 mm
For pumps
0.2 HP - 0.33 HP
Valve
1 1/2" side
Sand load (kg)
0 - 50 kg
Material
Laminated polyester
Type of filtration
Sand
