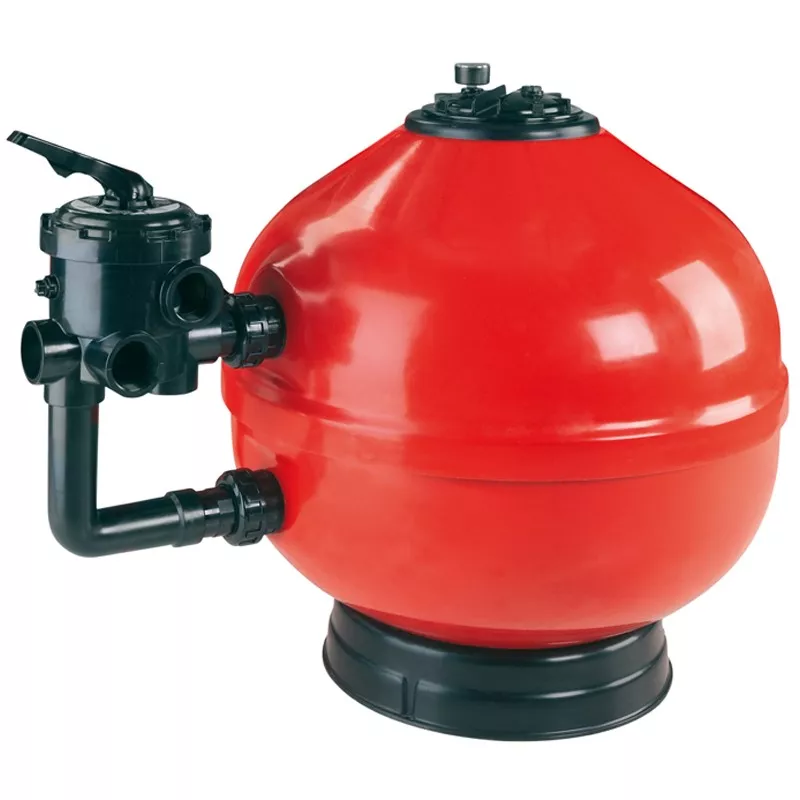

Filter Vesuvius D. 1200
ref: 06FI15790
- Swimming pool filter astralpool Vesubio series
- Code 15790
- Diameter 1200 mm
- Made of polyester resin and fibreglass
- With pressure gauge, manual water purge and automatic and manual air purge
- DOES NOT INCLUDE SELECTOR VALVE.
€2,059.00
Free shipping
Technical characteristics
General description of the swimming pool filter Astralpool Vesubio D.1200 mm:
- For private pools up to 350 m3
- Made of polyester resins and fibreglass.
- Excellent finish.
- Assembled with 1" collectors and diffuser made of inalterable plastic material.
- Equipped with pressure gauge, manual water purge, automatic and manual air purge.
- Connections for six-way side valve with filtering, flushing, rinsing, recirculation, emptying and shut-off operations.
- Filters up to ø1050 mm can use multiport valve. From ø900 mm upwards, they are supplied without valve. Maximum working pressure: 2,5 Kg/cm2.
Content of the purchase
- Vesuvio filter diameter 1200 mm
- SELECTOR VALVE NOT INCLUDED
Dimensions of the pool filter Astralpool Vesubio:
 |
|
|
|
|
|
|
|
| VESUBIO 450 | VESUBIO 500 | VESUBE 600 | VESUBE 750 | VESUBE 900 | VESUBE 1050 | VESUBE 1200 | |
| Diameter (mm) | 450 | 500 | 600 | 750 | 900 | 1050 | 1200 |
| A (mm) | 265 | 305 | 325 | 300 | 325 | 435 | 490 |
| B (mm) | 125 | 125 | 125 | 230 | 270 | 270 | 270 |
| C (mm) | 725 | 765 | 865 | 895 | 1080 | 1110 | 1235 |
| D (mm) | 347 | 400 | 400 | 490 | 625 | 760 | 855 |
| CONNECTIONS | 1" 1/2 | 1" 1/2 | 1" 1/2 | 2" | 2" 1/2 | 2" 1/2 | - |
| FLOW (m3/h) | 8 | 9 | 14 | 22 | 32 | 43 | 56 |
| SAND LOAD(kg) | 60 | 95 | 148 | 245 | 415 | 660 | 1000 |
| WARRANTY | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years 2 years | 2 years 2 years |
Data Sheet
- Recommended pool size
- 300-350 m3
- Filter diameter
- 1200 mm
- For pumps
- 3 CV
- Valve
- without valve
- Sand load (kg)
- 900 - 1000 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
