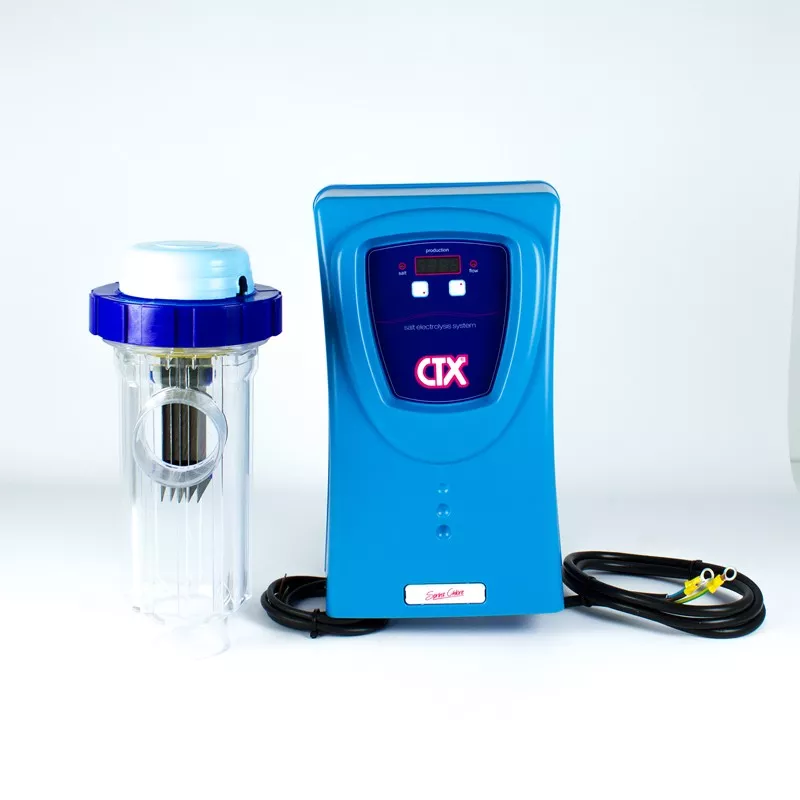

Salt chlorinator CTX-Certikin Sprint Chlore Junior
ref: 01IEQCS44362
- Certikin salt water chlorinator mod. Sprint Clore junior
- Cod. 44362
- Production 10-12 g/h
- Salt concentration 4 to 6 g/l
- Electrolysis equipment with high control reliability and ease of use.
- Ideal for private pools
- Self-cleaning cells thanks to their polarity change
- Titanium electrodes. Estimated duration 4,000 - 7,000 hours of operation (depending on the type of water).
Free shipping
Technical characteristics
Technical specifications of the Sprint Chlore CT Junior
Disinfection by salt electrolysis with self-cleaning titanium electrodes with electronic polarity reversal, microprocessor and flow detector included.
- Production: 10-12 gr/h.
- Operating voltage (ac): 230 V / 50-Hz.
- Output: 12 A (2x6A).
- Flow detector: gas detector.
- Salinity range: 4 - 6 g/l.
- Temperature: +15 - 40ºC.
- Minimum flow rate: 2 m3/h.
- Electrodes: Titanium with AUTO-CLEAN coating. Estimated duration: 4,000 - 7,000 hours of operation (depending on the type of water).
- No. of electrodes: 5.
- Production control: 0 - 100% (6 production levels).
- Cover control: voltage free contact input. Production reduction to 10% of its nominal value when the cover is closed.
- Polarity inversion: Programmable 2/ 3 hours (jumper on control board) + test mode
- External control: input for voltage free contact enabled by jumper on logic control board: ON (contact closed) / OFF (contact open).
- Salt level protection: Automatic production protection.
- Material: Methacrylate derivative.
- Pipe connection: Glued with adhesive for PVC pipe Ø 63mm.
- Maximum recommended pressure: 1 kg/ cm2.
Data Sheet
- gr/hour CL
- 1-14 g/hour
- Recommended pool size
- 20-50 m3
- With pH control
- No
