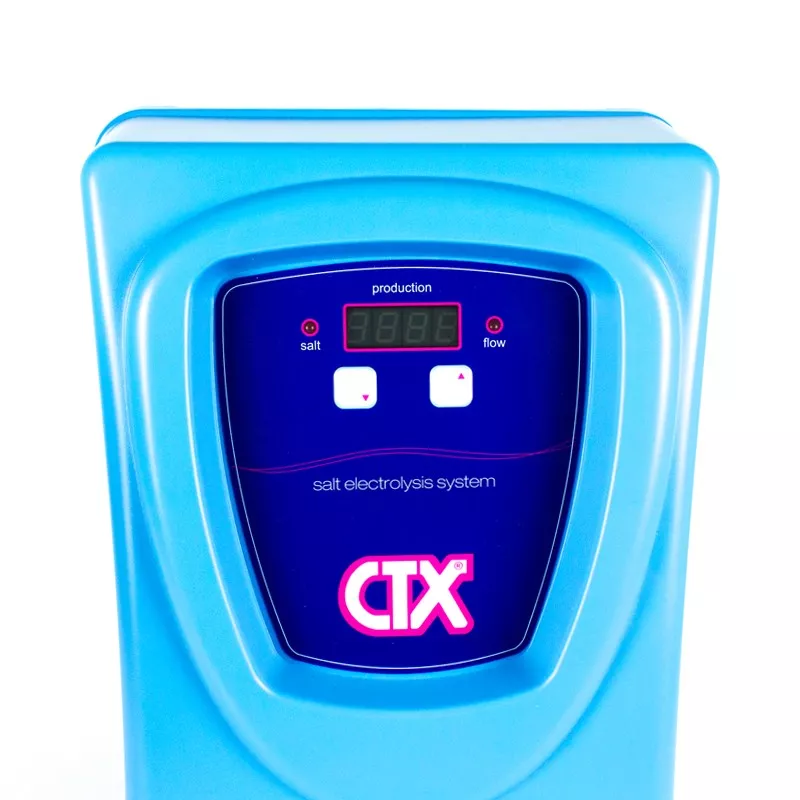

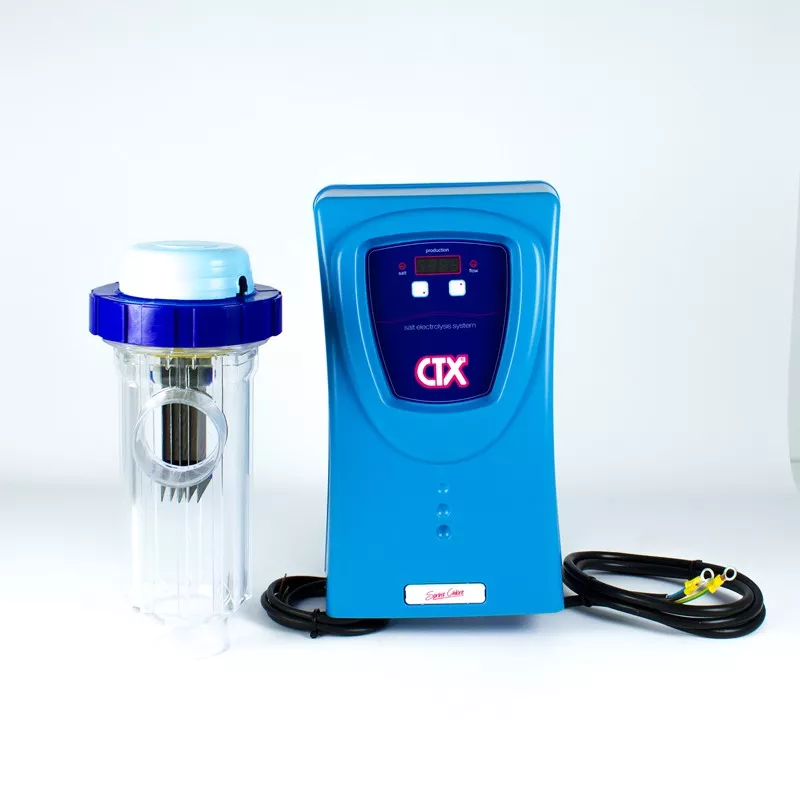

Salt chlorinator CTX-Certikin Sprint Chlore Senior
ref: 01IEQCS44363
- Certikin salt water chlorinator mod. Sprint Clore Senior
- Cod. 44363
- Production 20-24 g/h
- Salt concentration 4 to 6 g/l
- Electrolysis equipment with high control reliability and ease of use.
- Ideal for private pools
- Self-cleaning cells thanks to their polarity change
- Titanium electrodes. Estimated duration 4,000 - 7,000 hours of operation (depending on the type of water).
Free shipping
Technical characteristics
what type of pools is the salt water chlorinator suitable for?
Sprint Chlore CT Senior, for pools up to 120 m3 in cold/temperate climates and 60 m3 in warm/hot climates.
Technical specifications of the Sprint Chlore CT Senior.
Disinfection by salt electrolysis with self-cleaning titanium electrodes with electronic polarity reversal coating, microprocessor and flow detector included.
- Production: 20-24 gr/h.
- Operating voltage (ac): 230 V / 50-Hz.
- Output: 24 A (2x12A).
- Flow detector: gas detector.
- Salinity range: 4 - 6 g/l.
- Temperature: +15 - 40ºC.
- Minimum flow rate: 4 m3/h.

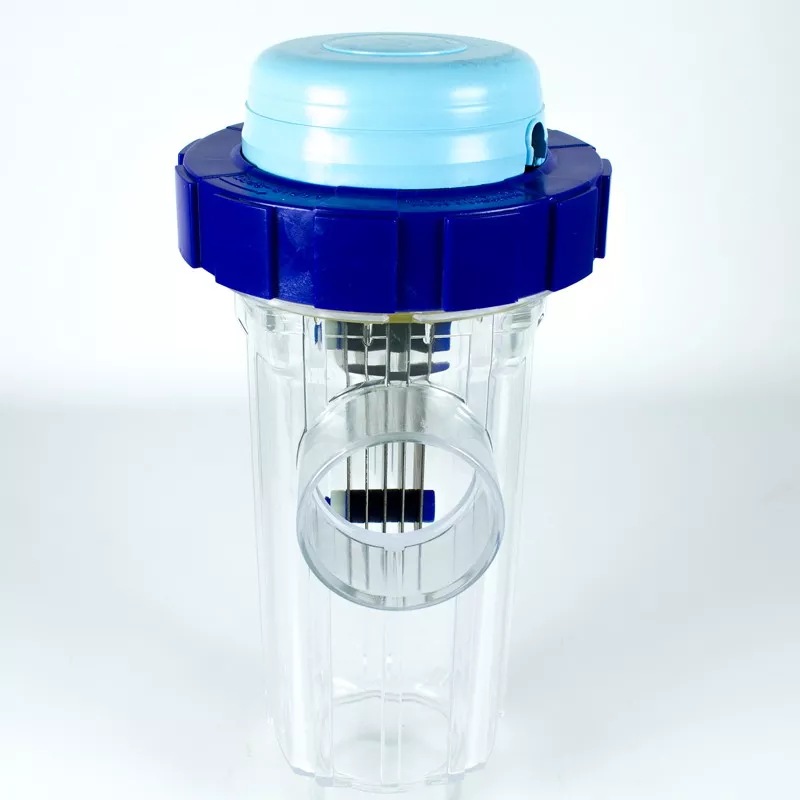

- Electrodes: Titanium with AUTO-CLEAN coating. Estimated duration: 4,000 - 7,000 hours of operation (depending on the type of water).
- No. of electrodes: 7.
- Production control: 0 - 100% (6 production levels).
- Cover control: voltage free contact input. Production reduction to 10% of its nominal value when the cover is closed.
- Polarity inversion: Programmable 2/ 3 hours (jumper on control board) + test mode.
- External control: input for voltage free contact enabled by jumper on logic control board: ON (contact closed) / OFF (contact open).
- Salt level protection: Automatic production protection.
- Material: Methacrylate derivative.
- Pipe connection: Glued with adhesive for PVC pipe Ø 63mm.
- Maximum recommended pressure: 1 kg/ cm2.
Data Sheet
- gr/hour CL
- 20-24 g/hour
- Recommended pool size
- 50-80 m3
- With pH control
- No
