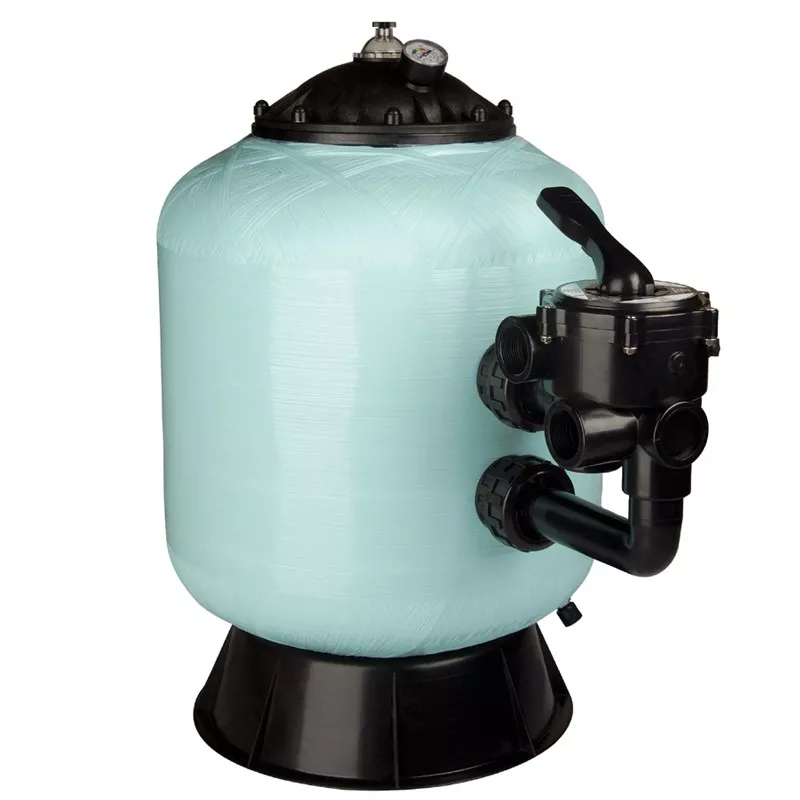

Filter Astralpool Berlin 600 With Selector Valve

what type of pool is the Astralpool Berlin d.600 filter suitable for?

For private pools up to 80 m3.

Its winding finish makes it highly resistant, and its blue satin finish gives it a much more attractive appearance compared to other filters. Berlin filters are available in diameters ranging from 500 mm to 1200 mm, so they can be installed in large volume private pools.sand filters wound in polyester resin and fibreglass.

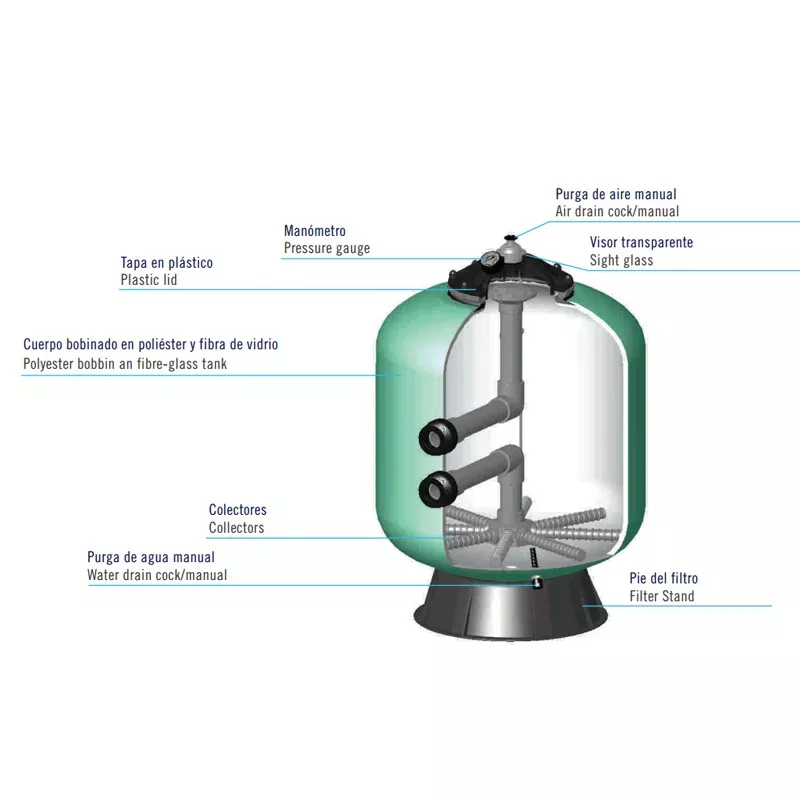

General technical characteristics Filter Astralpool Berlin

• Ø 240 bolt-on cover, injected for diameters up to 900 mm. Ø 400 screw-on lid, polyester and fibreglass for Ø 1050 and Ø 1200 mm.
• Satin blue finish, with dust protection by means of a "flash" of transparent polyurethane varnish, for Ø 500, Ø 600, Ø 750 and Ø 900. Blue finish for Ø 1050 and Ø 1200.
• Fitted with manifolds and diffuser in unalterable plastic materials PVC and PP.
• Fitted with pressure gauge and manual air and water drain. For Ø 900, Ø 1050 and Ø 1200 models, it incorporates a 2" sand trap.
• 6 (+1) way side selector valve for filtration, washing, rinsing, recirculation, emptying and shut-off operations on Ø 500, Ø 600 and Ø 750 models.
• Maximum filtration speed: 50 m3/h/m2.
• Maximum working pressure: 2.5 kg/cm2.
• Inner lining in HDPE (polyethylene), blown for Ø 500 and Ø 600 mm
• Ø 600 mm, thermoformed ABS for Ø 750 and Ø 900 mm, polyester and glass fibre for Ø 1050 mm
• and fibreglass for Ø 1050 and Ø 1200.
• Filter base made of plastic for models up to 750 mm diameter and polyester and fibreglass for larger diameters.

• Filter Astralpool Berlin d. 600
• Selector valve 1" 1/2
• Instruction manual
• Pressure gauge and manual air and water purge

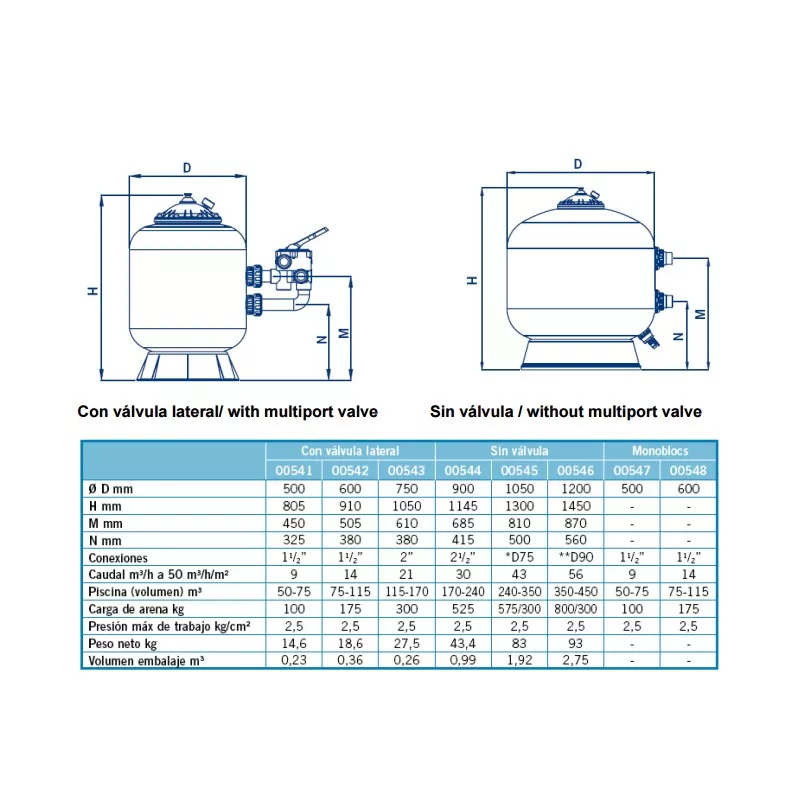

Dimensions of swimming pool filter Astralpool Berlin

	BERLIN 500	BERLIN 600	BERLIN 750	BERLIN 900	BERLIN 1050	BERLIN 1200
D (mm)	500	600	750	900	1050	1200
H (mm)	805	910	1050	1145	1300	1450
M (mm)	450	505	610	685	810	870
N (mm)	325	380	380	415	500	560
CONNECTIONS	1" 1/2	1" 1/2	2"	2" 1/2	2" 1/2	3"
FLOW (m3/h)	9	14	21	30	43	56
SAND LOAD(kg)	100	175	300	525	575 sand + 300 gravel	800 sand + 300 gravel
MAX. WORKING WORKING PRESSURE (kg/cm2)	2,5	2,5	2,5	2,5	2,5	2,5
NET WEIGHT (kg)	14,6	25	33	51
WARRANTY	2 years	2 years	2 years	2 years	2 years	2 years 2 years
