Swimming Pool Heater Astralpool Compact ElectricHeat 18 KW

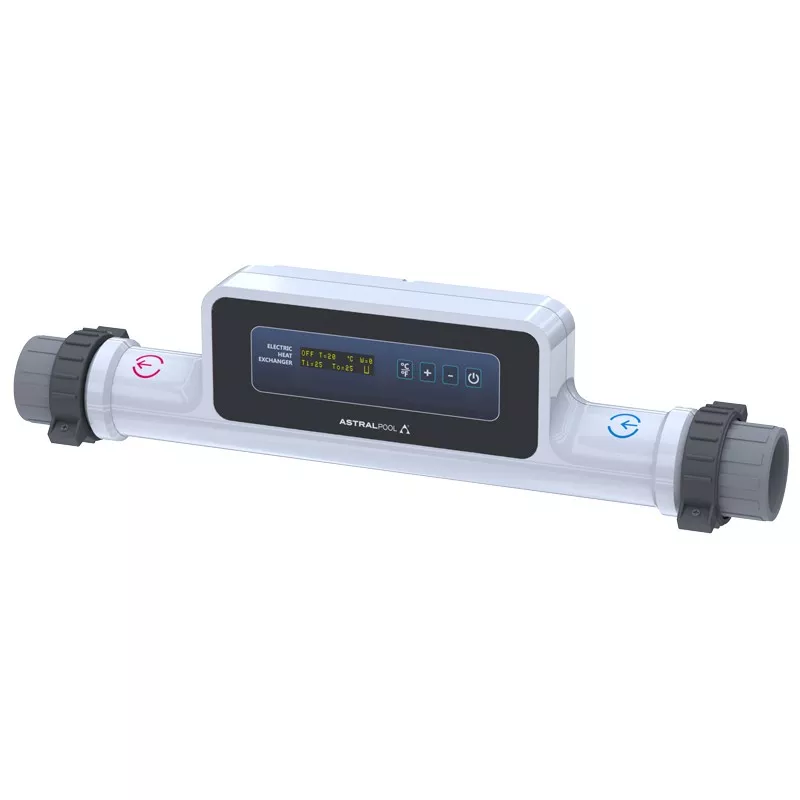

Swimming pool heater Astralpool Compact ElectricHeat

Theelectric heaterIs an alternative for heating swimming pool water. These devices are easy to install. They are ideal for heating small pools, spas or whirlpool baths.

The Compact ElectricHeat is an easy-to-install pool water heating system with immediate performance, using electric heating elements with an attractive design and exceptional features that make it unique.

It consists of an AISI-316 stainless steel body and INCOLOY 825 armoured resistors.

The Compact heater has a new, more compact and simpler design, together with a new clear and simple interface, which makes it easy to use.

Features Compact ElectricHeat:

• New, clearer and simpler user interface: Now with touch sensors and state-of-the-art OLED display.
• More information for the user in a more intuitive way.
• Component simplicity: internal components have been simplified and reduced.
• Interchangeable parts: the interior of the equipment is now composed of easily accessible and replaceable elements.
• New, more precise and safer electronic control.
• New software & hardware capable of detecting faults in installation and equipment.
• New electric actuation system with no moving parts: more reliability and less noise.
• Min flow rate: 2.4 - Max flow rate: 10 - Pressure 2-3 bar
• Inlet and outlet water temperature
• Set point temperature
• State flow rate
• Units of measurement (ºC, ºF)
• Number of resistors on

Advantages over other pool heaters

• Compact ElectricHeat is the easiest way to heat your pool or spa, due to its linear installation.
• It is the most economical investment to enjoy a warm pool.
• All-in-1 design:
  - Thanks to the new All-in-1 design, it is more compact and simpler.
  - The linear configuration allows for ease of installation.
  - All components are located inside the electric heater, which is a distinguishing feature in the market.
  - Compact ElectricHeat has an innovative and modern design that allows for ease of installation and use.
• Variable capacity:
  - The Compact ElectricHeat has 3 heating elements that allow for an overall improvement in performance. This variable capacity delivers energy when it is needed and therefore precisely adjusts the efficiency of the heater to the demand.
• Longer service life:
  - Compact ElectricHeat uses electronic technology (Triacs) instead of contactors. Triacs have no mechanical parts and therefore no movement. This technology increases the service life and minimises the amortisation period. In addition, the absence of movement avoids operating noises and higher reliability.

		COMPACT 3	COMPACT 6	COMPACT 9	COMPACT 12	COMPACT 18
POWER (W)		3.000	6.000	9.000	12.000	18.000
POWER SUPPLY (V/Hz)		200/50 ó 380/50	200/50 ó 380/50	200/50 ó 380/50	380/50	380/50
FLOW (m/h)	Minimum	2,5	2,5	2,5	2,5	2,5
	Maximum
PRESSURE (bar)	Minimum
	Maximum
WATER CONNECTION (Ø mm.)		50 / 63	50 / 63	50 / 63	50 / 63	50 / 63
MAXIMUM ABSORBED CURRENT (A)	220 / 2 / 50				-	-
	380 / 4 / 50	5
FLUIDRA CONNECT App		No	No	No	No	No
