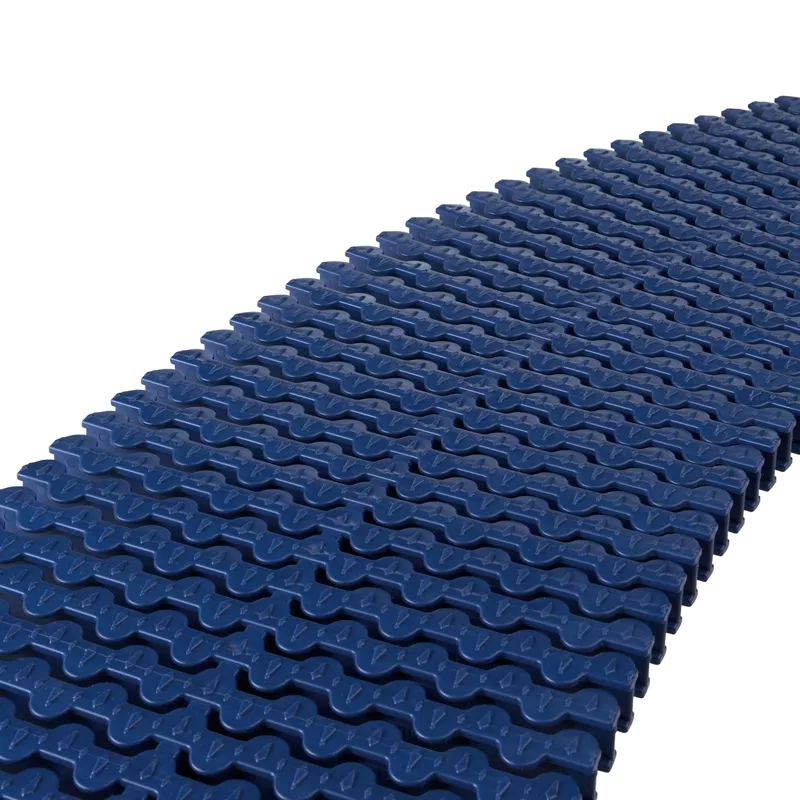

Cross grille module navy blue for curves Astralpool 35/335 mm
- Multi-purpose overflow grating for both CURVES AND STRAIGHT , navy blue colour
- Cod. 34197-CL60
- Manufacturer Astralpool
- Height 35 mm Width 335 mm
- Product certified by the EN-13451-1 safety standard
- Made of UV stabilised polypropylene
- Union by tightening coupling between modules
- 52 units per metre
Bought together Usually
Technical characteristics
Grating Astralpool 34197-CL60
Transversal grating specially designed for pools with curves around the perimeter. Made of polypropylene for protection against UV rays.
The range is composed of 5 colours for a better adaptability to the aesthetic needs of your pool. The range also offers two different heights and five different lengths. A real advantage for the construction of your pool overflow.
The product is certified to the EN-13451-1 safety standard (8 mm).
The modules are reversible in the 35 mm height model.
It is recommended to build the overflow channel 5mm wider than the grating so that it can be easily adapted and avoid possible expansion.
how are the gratings joined?
These gratings are joined together by means of a tightening coupling between modules.
how do I know how much I need?
Each linear metre is made up of 52 units.
The measurements are: height 35 mm and width 335 mm.

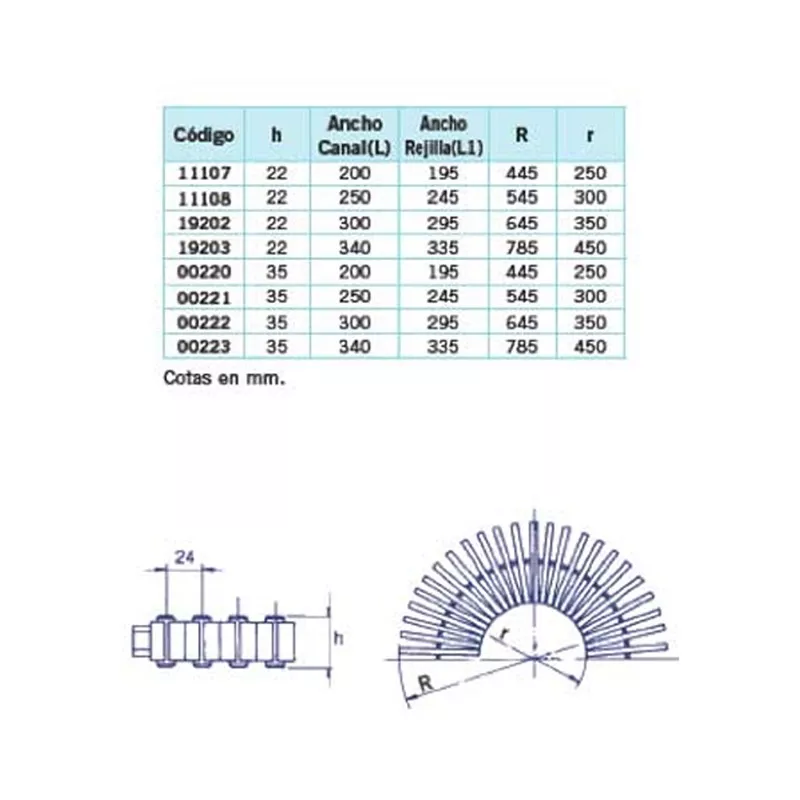

Data Sheet
- High
- 35 mm
- Width
- 335 mm
- Colour
- Colour
- Type
- Grid
