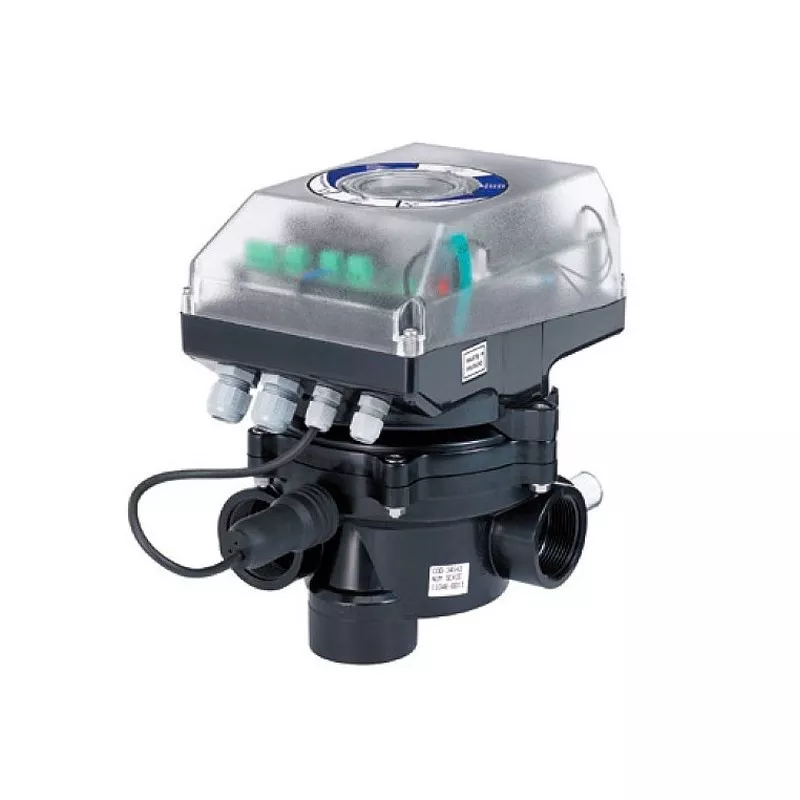

Automatic shuttle valve Top 1 1/2" FLAT
ref: 06FI43512
ean13: 8435099264965
sku: 43512
- Automatic top selector valve "System VRAC" 1 1/2" de Astralpool
- Cod. 43512
- Power supply 230 V
- Maximum working pressure 3.5 bar, pressure switch range 03-3.5 bar, nominal flow rate 12 m3/h
- Automatic selector valve model that stands out for its simplicity of operation.
- It performs filtration, washing, rinsing and emptying operations
- Top valve not compatible with Cantabric filter
€869.00
Free shipping
Technical characteristics
Top FLAT selector valve
AstralPool has developed a new automatic selector valve within the reach of any user that will allow you to forget about the filtration of your pool. With an innovative design, easy handling and maximum reliability, this valve also has the unique features of a compact design and a visual position indicator. Functions: filtration, emptying, washing and rinsing.
The "System VRAC" automatic selector valve is easily adaptable to any filter on the market and is quick and easy to install.
An attractive design will enhance the appearance of your technical room and give it an air of modernity. The technology incorporated in these valves will also save you time and allow you to enjoy your pool more.
Compact and streamlined in appearance, they have the following features:
- Innovative design, convenient operation and maximum reliability, it is designed for residential pools with filters up to a maximum diameter of 600 mm.
- It allows you to adjust the cleaning time by means of a potentiometer on the electronic board and to see the position of the function that the valve is carrying out at any given moment.
- Unlike the System Vrac BASIC valve, which can perform the flushing function either by pressure difference or by time, this new model will only perform the flushing function when it detects excess pressure in the filter.
- Drain button on the side of the actuator.
- Non-programmable fixed rinse time (30").
Features Valve 43512:
- Innovative design.
- Easy installation.
- Low weight and volume.
- High impact resistant cover.
- Water and dust resistant (IP 65).
- Complies with CE regulations.
- Self-stopping of the pump when the valve is changing position.
- Hydraulic safety valve: Optional safety system against possible power failures that may coincide with a change of position.
Advantages of System VRAC Flat
Increased valve torque due to more powerful electronics.
New flushing button with LED on the control panel, which makes it easier to start the flushing routine and adjust the pressure switch. Programmed times are retained in memory in case of power loss.
Automatic internal temperature control to avoid condensation. MODBUS communication system allows the valve to be controlled and monitored from a central control.
New error coding, including error of 3 consecutive flushes, to avoid accidental emptying of the pool. Time lag times have been included to avoid water hammer.
NOTE
Installation of the Multiport Safety Valve is recommended.
Data Sheet
- Valve
- Upper 1 1/2
- System
- Automatic
