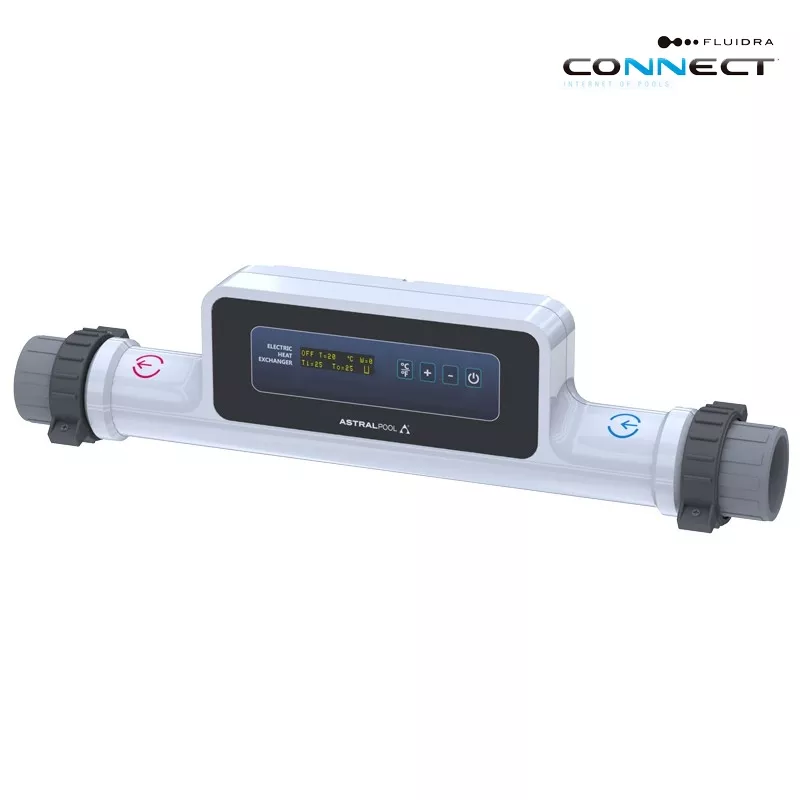

Swimming Pool Heater Astralpool Compact 9 Titanium

Swimming pool heater Astralpool Compact

Theelectric heaterIs an alternative for heating swimming pool water. These devices are easy to install. They are ideal for heating small pools, spas or whirlpool baths.

The Compact ElectricHeat is an easy-to-install pool water heating system with immediate performance, using electric heating elements with an attractive design and exceptional features that make it unique.

It consists of an AISI-316 stainless steel body and INCOLOY 825 armoured resistors.

The Compact heater has a new, more compact and simpler design, together with a new clear and simple interface, which makes it easy to use.

Compact features:

• New, clearer and simpler user interface: Now with touch sensors and state-of-the-art OLED display.
• More information for the user in a more intuitive way.
• Component simplicity: internal components have been simplified and reduced.
• Interchangeable parts: the interior of the equipment is now composed of easily accessible and replaceable elements.
• New, more precise and safer electronic control.
• New software & hardware capable of detecting faults in installation and equipment.
• New electric actuation system with no moving parts: more reliability and less noise.
• Min flow rate: 2.4 - Max flow rate: 10 - Pressure 2-3 bar
• Inlet and outlet water temperature
• Set point temperature
• State flow rate
• Units of measurement (ºC, ºF)
• Number of resistors on
• Specific model for Fluidra Connect.

Advantages over other pool heaters

• Compact ElectricHeat is the easiest way to heat your pool or spa, due to its linear installation.
• It is the most economical investment to enjoy a warm pool.
• All-in-1 design:
  - Thanks to the new All-in-1 design, it is more compact and simpler.
  - The linear configuration allows for ease of installation.
  - All components are located inside the electric heater, which is a distinguishing feature in the market.
  - Compact ElectricHeat has an innovative and modern design that allows for ease of installation and use.
• Variable capacity:
  - The Compact ElectricHeat has 3 heating elements that allow for an overall improvement in performance. This variable capacity delivers energy when it is needed and therefore precisely adjusts the efficiency of the heater to the demand.
• Longer service life:
  - Compact ElectricHeat uses electronic technology (Triacs) instead of contactors. Triacs have no mechanical parts and therefore no movement. This technology increases the service life and minimises the amortisation period. In addition, the absence of movement avoids operating noises and higher reliability.

What is Fluidra Connect?

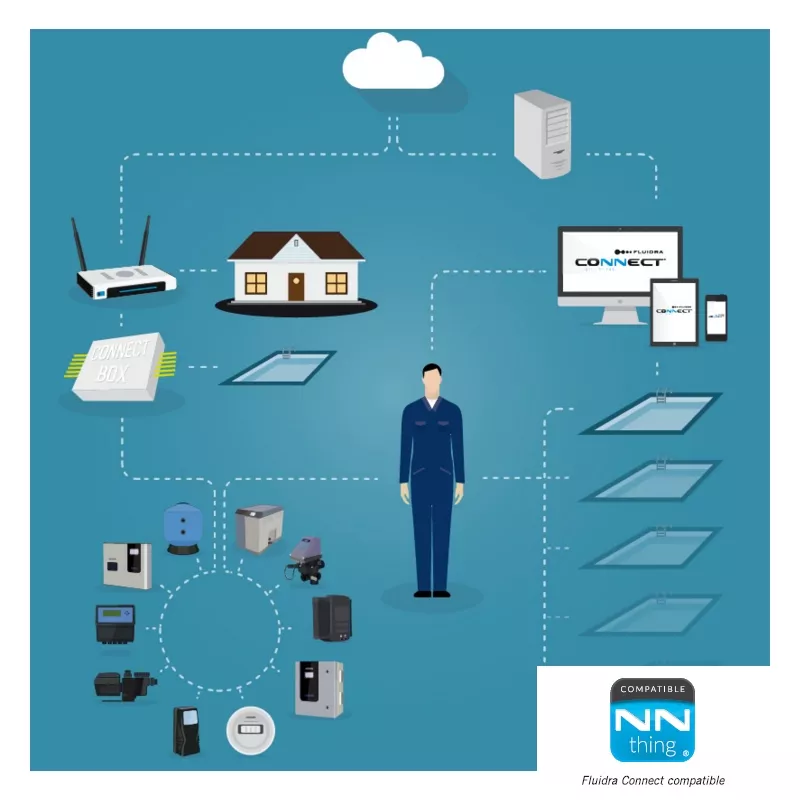

Fluidra Connect is the intelligent solution that allows the pool to be controlled remotely by the end user and/or the professional. Giving the possibility to diagnose, manage and control all your installations from a computer screen.

Fluidra Connect allows two control modes:

• Basic and intuitive end-user control via the App.
• Advanced control for the professional through the platform www.fluidraconnect.com

What do I need to install it in my pool?

There are 3 options:

1) CONNECT BOX. For Fluidra Connect compatible products, the Connect Box is the brain of the pool. Any installation to be managed via Fluidra Connect requires a Connect Box that must be connected to the internet via WiFi or cable.

2) GPIO. For products that are not compatible with Fluidra Connect, this device offers a solution with 4 outputs and 4 digital inputs. The GPIO allows us to ON/OFF and perform time programming on non-compatible products. It also allows us to see the status of some equipment.

3) FLUIDRA CONNECT COMPATIBLE COMMUNICATION KIT. Some products support the installation of this kit to become compatible with Fluidra Connect.

		COMPACT 3 TITANIUM	COMPACT 6 TITANIUM	COMPACT 9 TITANIUM	COMPACT 12 TITANIUM	COMPACT 18 TITANIUM
POWER (W)		3.000	6.000	9.000	12.000	18.000
POWER SUPPLY (V/Hz)		200/50 ó 380/50	200/50 ó 380/50	200/50 ó 380/50	380/50	380/50
FLOW (m/h)	Minimum	2,5	2,5	2,5	2,5	2,5
	Maximum
PRESSURE (bar)	Minimum
	Maximum
WATER CONNECTION (Ø mm.)		50 / 63	50 / 63	50 / 63	50 / 63	50 / 63
MAXIMUM ABSORBED CURRENT (A)	220 / 2 / 50				-	-
	380 / 4 / 50	5
FLUIDRA CONNECT App		Yes	Yes	Yes	Yes	Yes
