Heat Exchanger Zodiac Heat Line Plus 20
ref: 08CAW49KT20
ean13: 9317545032702
sku: W49KT20

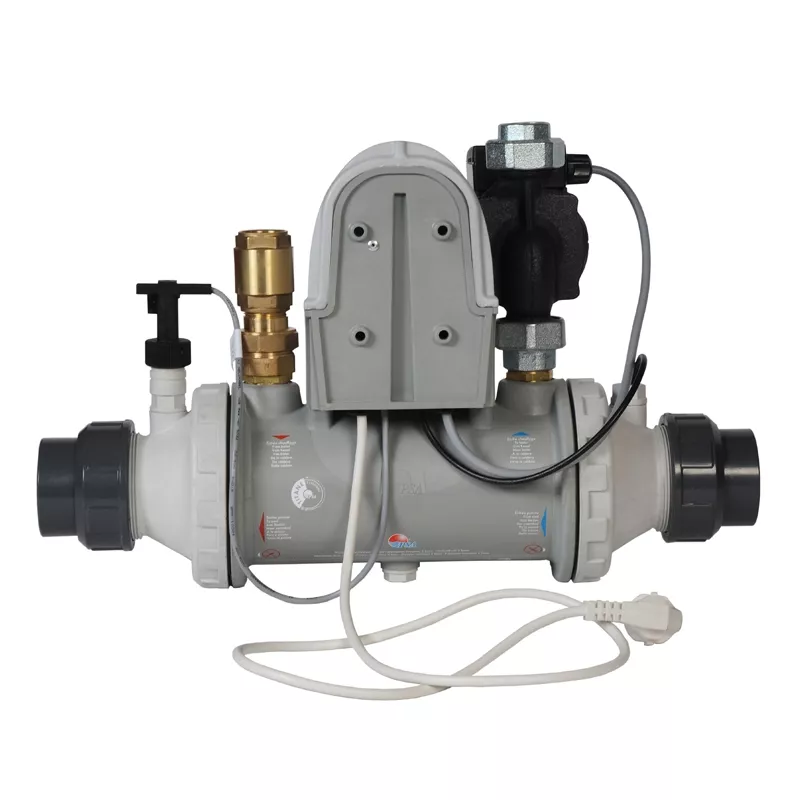

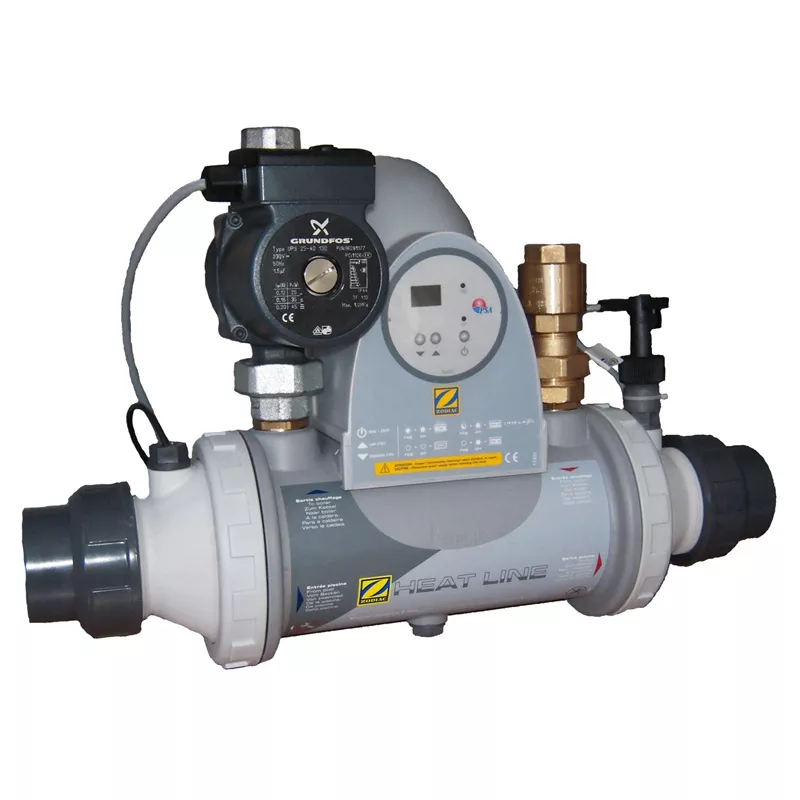

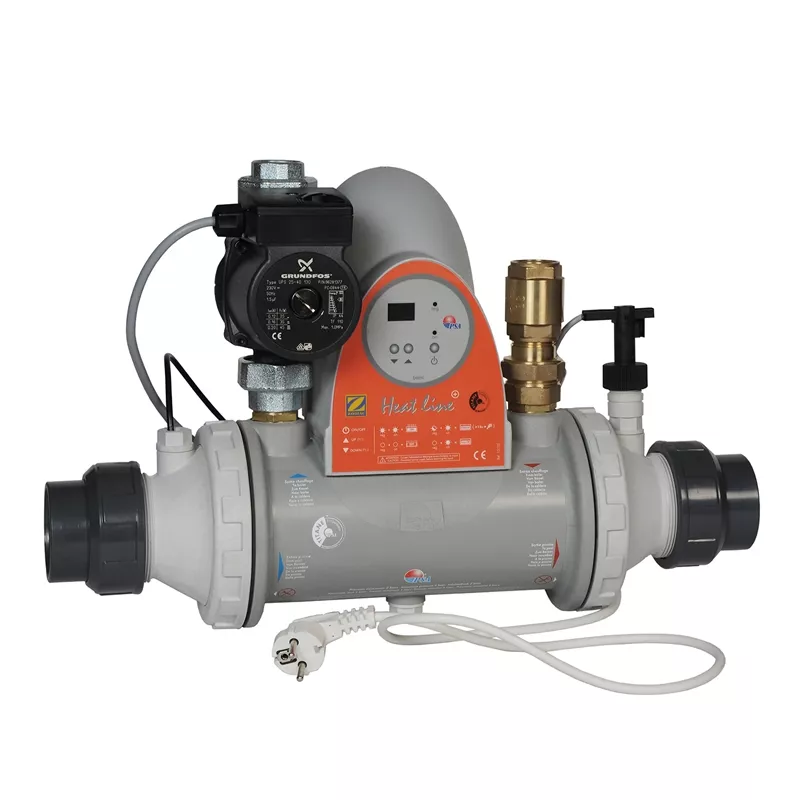

- Heat exchanger Zodiac mod.Heat Line Plus
- Cod. W49KT20
- Digital temperature thermostat, on/off switch, flow controller
- Compatible with all types of heaters (heat pump, boiler, solar)
- Maximum robustness with Titanium tubes and Noryl-Polyamine sheathing

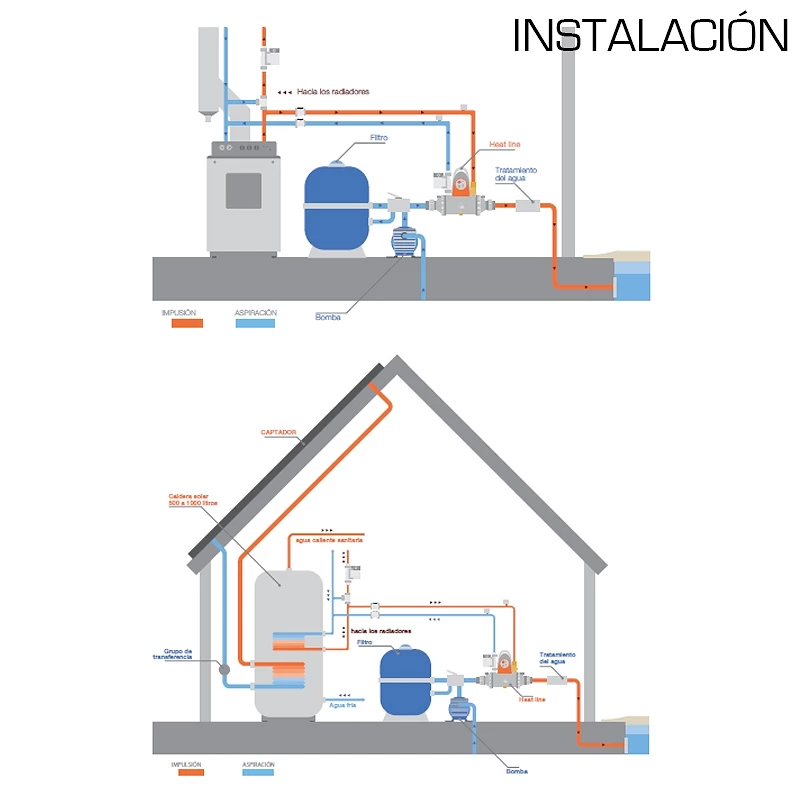

- Easy installation, very resistant
- Power with primary at 90ºC:20KW
- With recirculation pump
€1,429.00
Free shipping
Technical characteristics
Heat exchanger Zodiac
The purpose of an exchanger is to transfer calories from one circuit to another. The larger the exchange surface, the more calories the secondary circuit can take from the primary.
The plate heat exchanger is better suited to low-temperature primaries, as it has a larger exchange surface area than a multi-tube heat exchanger.
Heat Line Plus features
- Noryl / injected polyamide casing.
- Titanium tubes.
- Non-return valve.
- Flow switch.
- Electrical panel connected by cable with 230 V plug.
- Digital thermostat.
- Circulator
- Power with primary at 90ºC: 20 KW.
- Primary flow rate (heating): 0.9 m3/h.
- Secondary flow (swimming pool): 10 m3/h.
- Compatible with all types of domestic heating systems.
- Maximum resistance (titanium plates and Noryl / polyamide body).
| MODEL | Heat Line 20 | Heat Line 40 | Heat Line 70 |
| TECHNICAL CHARACTERISTICS | |||
| Power with primary at 90º C (kW) | 20 | 40 | 70 |
| Power with primary at 60º C (kW) | 8.5 | 17 | 30 |
| Power with primary at 45º C (kW) | 4 | 8 | 14 |
| Maximum pressure (pool circuit) | 2 bar | 2 bar | 2 bar |
| Maximum admissible temperature | 90º C | 90º C | 90º C |
| CONNECTIONS | |||
| Primary (heating) | 26/34 Ø mm | 26/34 Ø mm | 26/34 Ø mm |
| Secondary (swimming pool) | 63 or 50 Ø PVC | 63 or 50 Ø PVC | 63 or 50 Ø PVC |
| Flow rate (m3/h) primary | 0.9 | 1.7 | 3 |
| Flow rate (m3/h) secondary | 10 | 15 | 20 |
| EQUIPMENT | |||
| Body | noryl/polyamide injected | injected noryl/polyamide | injected noryl/polyamide |
| Tubes | Titanium | Titanium | Titanium |
