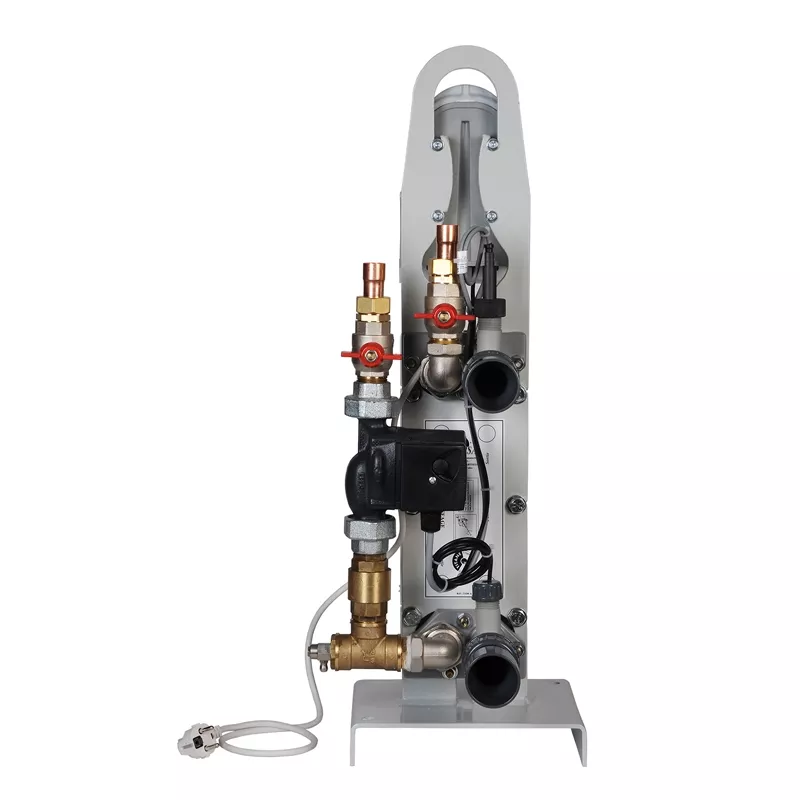

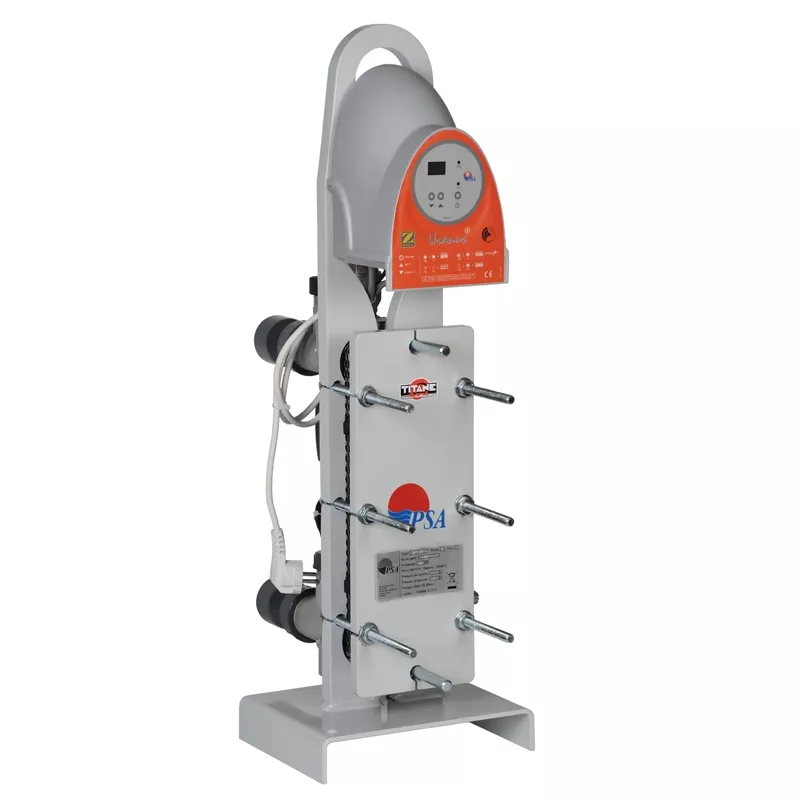

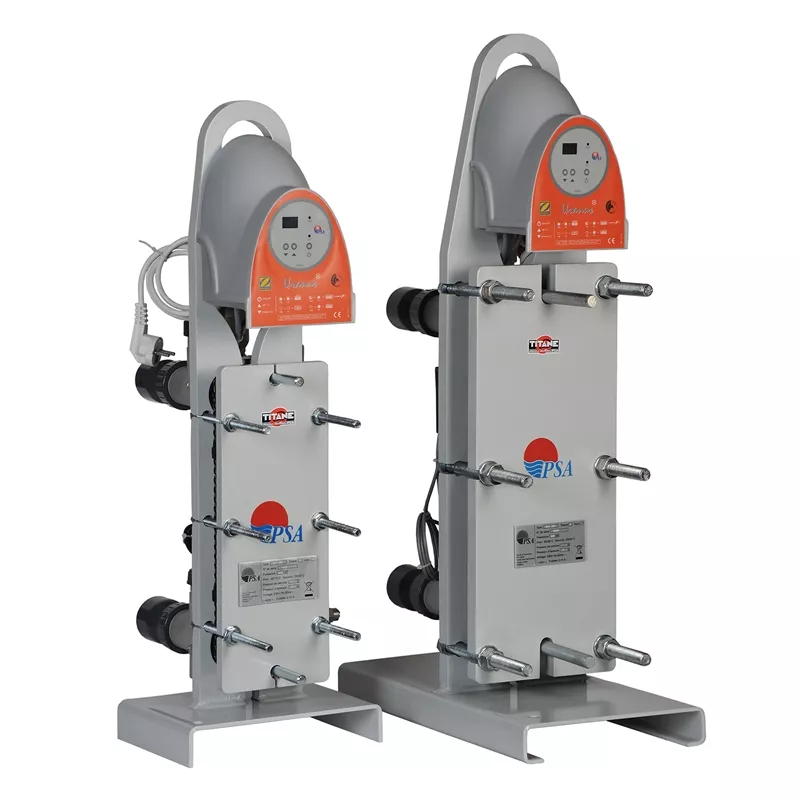

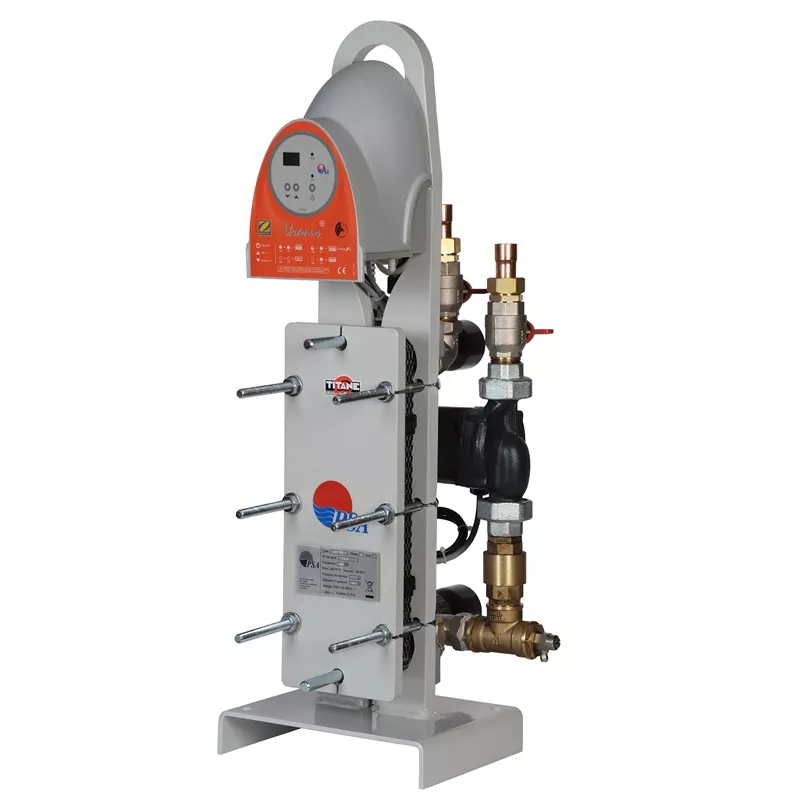

Heat exchanger Zodiac Uranus 35 with casing

Heat exchanger Zodiac

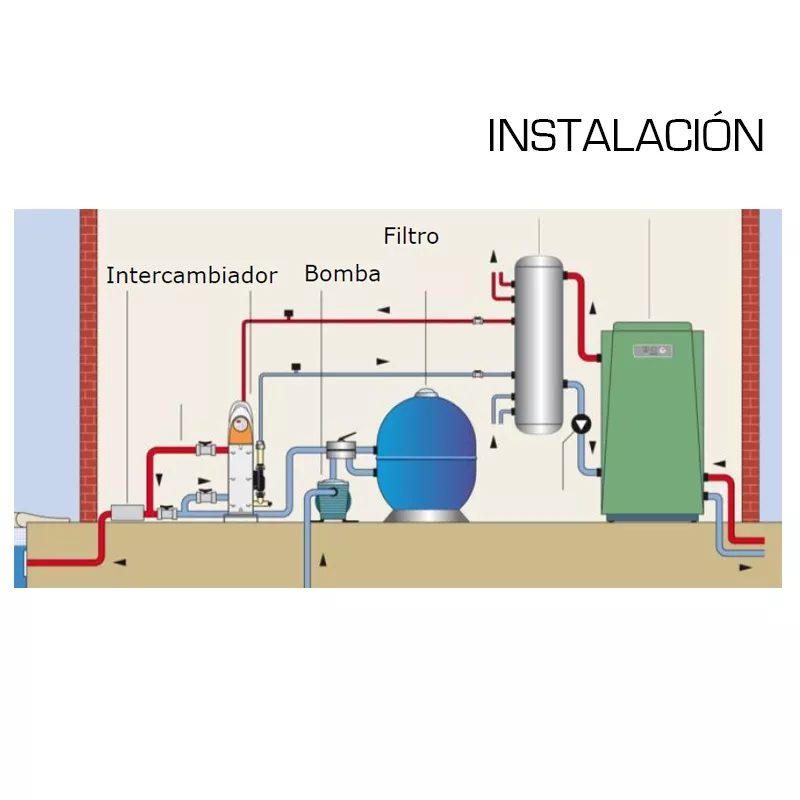

The purpose of an exchanger is to transfer calories from one circuit to another. The larger the exchange surface, the more calories the secondary circuit can take from the primary.

The plate heat exchanger is better suited to low-temperature primaries, as it has a larger exchange surface area than a multi-tube heat exchanger.

Uranus features

• High performance titanium plate heat exchanger.
• PRIMARY with adjustable 2-way selector 1/4 turn, non-return on stand-by male thread D.26/34 with welding nozzles D.20/22.
• SECONDARY in PVC D.50.
• Low consumption circulation pump.
• Thermostat with LCD display.
• Flow switch.
• Single-phase cable.
• Drain plug.
• Power with primary at 90ºC: 35 KW.
• Primary flow rate: 1.6 ^m3/h.
• Secondary flow rate: 2 ^m3/h.
• Maximum resistance material in the fixing flanges.
• Class A consumption.
• Compatible with all types of domestic heating systems.
• Maximum resistance (titanium plates and Noryl / polyamide body).

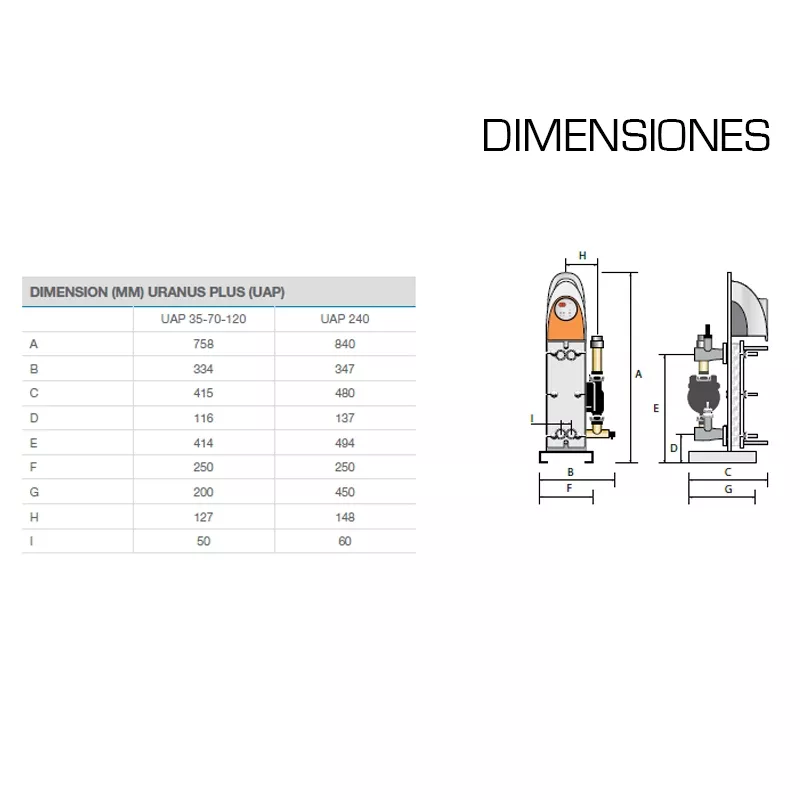

MODEL	UAN/UAP 35	UAN/UAP 70	UAN/UAP 120	UAN/UAP 240
TECHNICAL CHARACTERISTICS
Power with primary at 90ºC (kW)	35	70	120	240
Power with primary at 60ºC (kW)	27	38	63	123
Power with primary at 45ºC (kW)	15	21	34	68
Maximum primary pressure	3 bar	3 bar	3 bar	3 bar
Maximum secondary pressure	2 bar	2 bar	2 bar	2 bar
Maximum admissible primary temperature	90º C	90º C	90º C	90º C
Maximum admissible secondary temperature	40º C	40º C	40º C	40º C
Power supply	230V 50Hz	230V 50Hz	230V 50Hz	230V 50Hz
CONNECTIONS
Primary (heating)	20/22 Ø	20/22 Ø	20/22 Ø	20/22 Ø
Secondary (swimming pool)	50 Ø PVC	50 Ø PVC	50 Ø PVC	50 Ø PVC
EQUIPMENT
Heat exchanger	Titanium plates	Titanium plates	Titanium plates	Titanium plates
Circulation pump	Low consumption Class A	Low consumption Class A	Low consumption Class A	Low consumption Class A
Thermostat	LCD display	LCD Display	LCD Display	LCD Display
