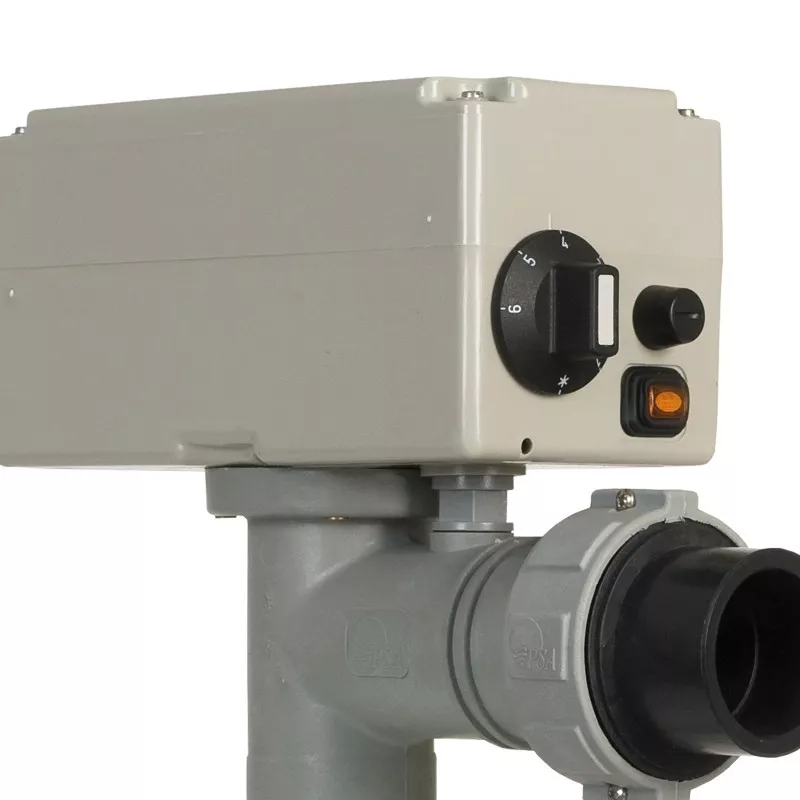

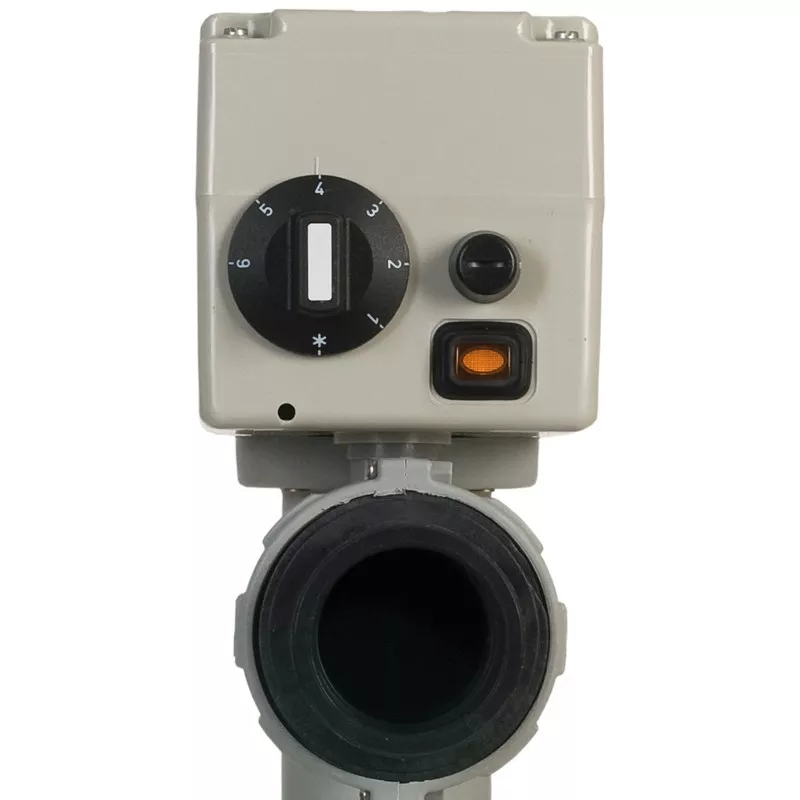

Swimming Pool Heater Zodiac RE/LE 3
ref: 08CAW40LE03
ean13: 9317545032405
sku: W40LE03
- Heater Zodiac mod. RE/L
- Code: W40LE03
- Power 3 KW
- TITANIUM heater and polyamide casing
- Easy use and maintenance
- Easy installation with 50-63 mm Ø connections
- Compact for narrow technical rooms with a total length of 550 mm. 120 mm wide and 275 mm high
- With 16/40° C control thermostat and safety thermostat
€949.00
Free shipping
Technical characteristics
Heater Zodiac RE/LE
The electric heater is an alternative for heating swimming pool water. These devices are easy to install. They are ideal for heating small pools, spas or whirlpools.
The Zodiac RE/LE 3 is ideal for heating pools up to 20 m3.
The electric heater is the simplest heating solution to install. It is installed directly in the pool's filtration circuit.
It is only necessary to set the heater to the desired temperature and the temperature increase is reached within 2 to 5 days. To increase the temperature, set the filtration to continuous mode, once the desired temperature has been reached, reset the filtration to automatic position.
The electric heaters Zodiac-PSA consist of a polyamide tube and a titanium heating element. The water is heated when it comes into contact with the resistance inside the tube.
Characteristics RE/LE 3
- Electric panel with flow switch.
- Mechanical regulation thermostat 16-40ºC.
- EPDM flanges
- HYPALON connectors.
- High temperature limiter.
- Maximum volume: 20 m3.
- Heating element power: 3 kW.
- Hydraulic connection: PVC Ø50 or Ø63 mm.
- The unit must be installed in the direction of water flow.
- 2 years warranty
Data Sheet
- Power input (at 15ºC)
- 0 - 3 kw
- Resistance in
- Titanium
- Thermostat
- Analogue
