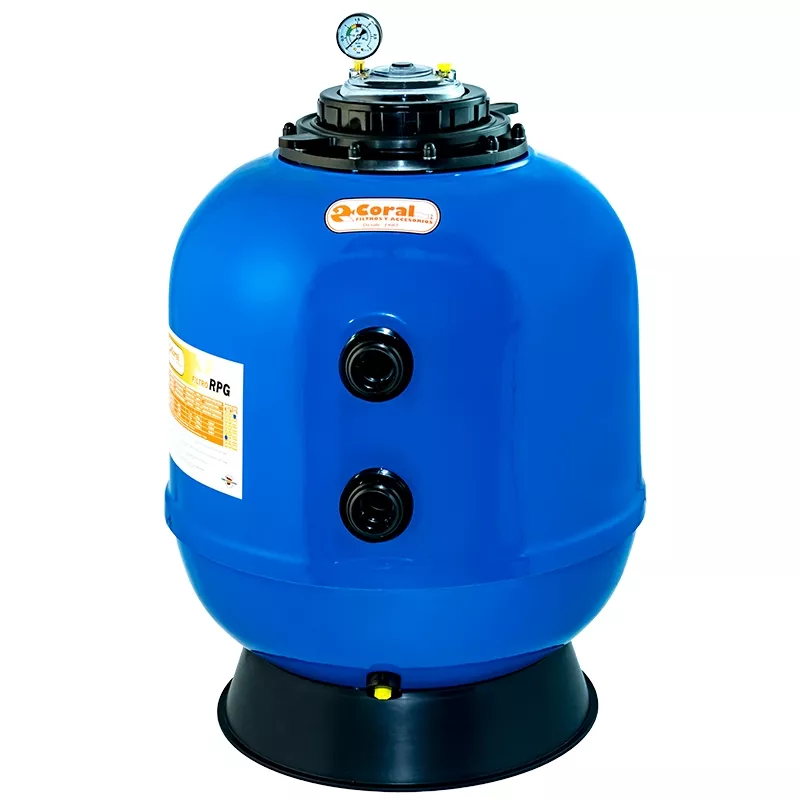

Swimming pool filter RPG 2.0 750
ref: 06FI01017003
ean13: 8410189053285
sku: 540007AZ
- Swimming pool filter RPG series.
- Diameter: 750 mm.
- Manufacturer: Coral.
- Code: 01017003.
- Made of polyester and fiberglass.

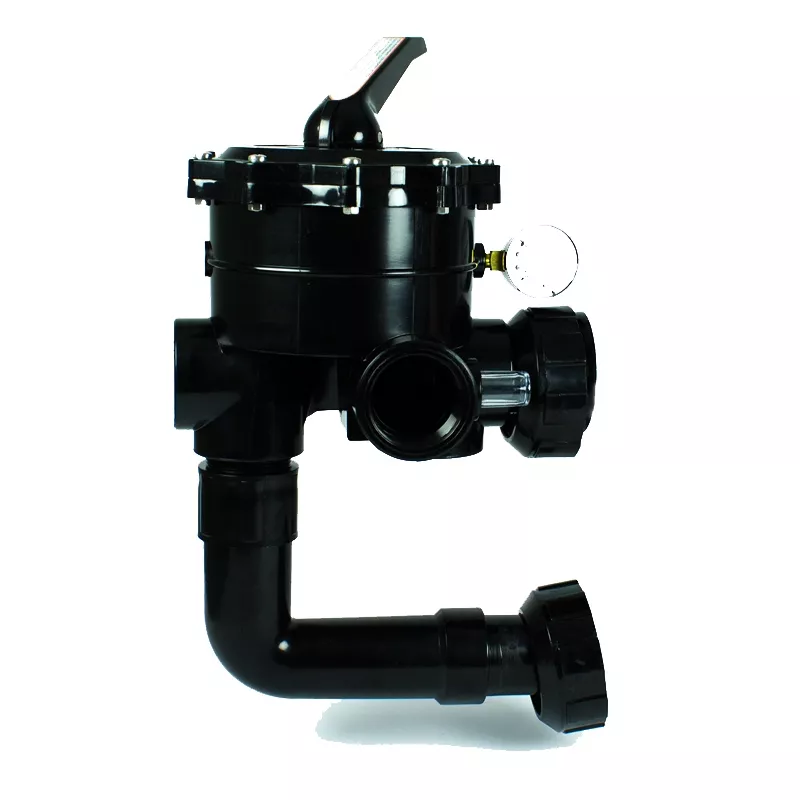

- INCLUDES 6-WAY 2" SELECTOR VALVE.
- Also includes pressure gauge and manual and automatic air vent.
Free shipping
Technical characteristics
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming
Filter RPG 2.0 750
- Recommended for pools up to 120 m3.
- Polyester and fibreglass filter.
- Round plastic base.
- 2" 6-way side selector valve.
- Pressure gauge.
- Manual and automatic air purges.
- Recommended flow rate: 24 m3/h.
- Connections: 2".
- Flint sand load: 300 kg.
- no. of nozzles: 16.
- Dimensions: 750 x 970 mm.
 |
|
|
|
| RPG 2.0 500 | RPG 2.0 600 | RPG 2.0 750 | |
| Diameter (mm) | 500 | 600 | 750 |
| Height (mm) | 740 | 840 | 970 |
| Connections | 1" 1/2 | 1" 1/2 | 2" |
| Flow rate (m3/h) | 10 | 15 | 24 |
| Sand load (kg) | 85 | 150 | 300 |
| Filtration area (m2) | 0,20 | 0,28 | 0,46 |
Data Sheet
- Recommended pool size
- 80-120 m3
- Filter diameter
- 750 mm
- For pumps
- 1.5 HP
- Valve
- Side 2
- Sand load (kg)
- 250 - 300 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
