Filtro depuradora para piscina Serie 92 D.1100

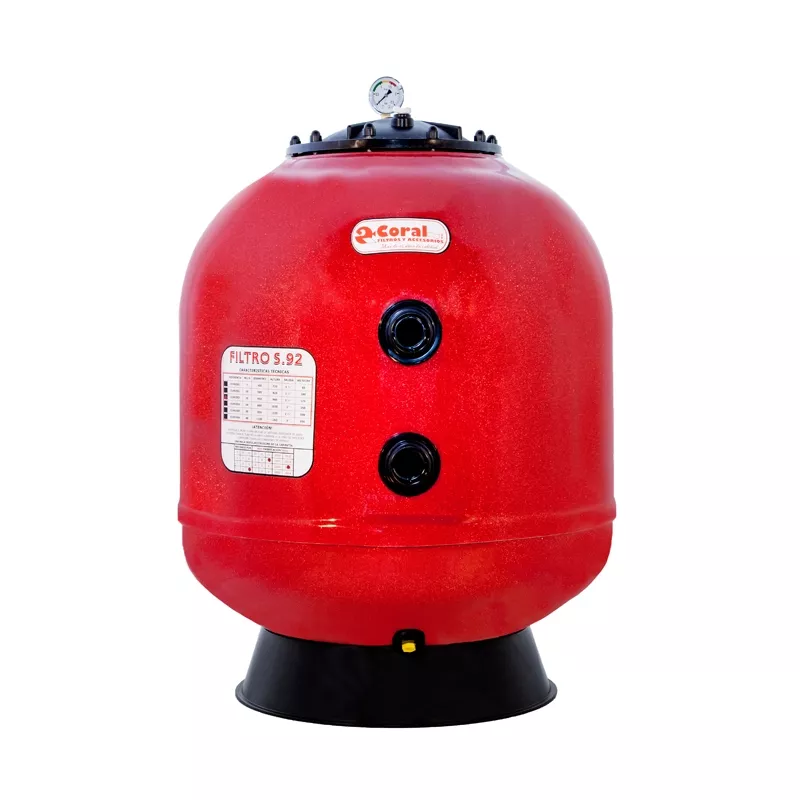

D.1100 Series 92 swimming pool filter

ref: 06FI01092006 ean13: 8410189002948 sku: 1092006
  • Swimming pool filter Series 92.
  • Diameter: 1100 mm.
  • Manufacturer: Coral.
  • Code: 01092006.
  • Made of polyester and fibreglass.
  • DOES NOT INCLUDE SELECTOR VALVE.
  • Includes pressure gauge and manual and automatic air vent.
Questions about this product?
Discuss it with us and ask us. Our technicians will solve your doubts.
€1,789.00
Free shipping
Free Shipping + info

Technical characteristics

Filter Series 92 D.1100

Ideal for pools up to 250 m3.

Characteristics 92 Series Filter

  • Polyester and fibreglass filter.
  • Support integrated in the fibreglass shell.
  • SELECTOR VALVE NOT INCLUDED.
  • Pressure gauge.
  • Manual and automatic air purges.
  • Recommended flow rate: 48 m3/h.
  • Connections: 3".
  • Outlet with 90 mm flanges.
  • Flint sand load: 850 kg.
  • no. of nozzles: battery.
  • Dimensions: 1100 x 1260 mm.
Filtro depuradora para piscina Serie 92 D.400 Filtro depuradora para piscina Serie 92 D.400 Filtro depuradora para piscina Serie 92 D.400 Filtro depuradora para piscina Serie 92 D.400 Filtro depuradora para piscina Serie 92 D.400 Filtro depuradora para piscina Serie 92 D.400
SERIES 92 400 SERIES 92 500 SERIES 92 500 SERIES 92 800 SERIES 92 950 SERIES 92 1100
Diameter (mm) 400 500 650 800 950 1100
Height (mm) 720 820 940 1020 1120 1260
Connections 1" 1/2 1" 1/2 1" 1/2 2" 2" 1/2 3"
Flow rate (m3/h) 7 10 15 24 35 48
Sand load (kg) 65 100 175 350 500 850
Filtration surface (m2) 0,18 0,22 0,30 0,50 0,68 0,86
WARRANTY 2 years 2 years 2 years 2 years 2 years 2 years 2 years

Data Sheet

Recommended pool size
200-250 m3
Filter diameter
1100 mm
For pumps
3 CV
Valve
without valve
Sand load (kg)
700 - 900 kg
Material
Laminated polyester
Type of filtration
Sand
